100W 12V DC Triac Dimmable Euchips LED Driver DIM107H-12 is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

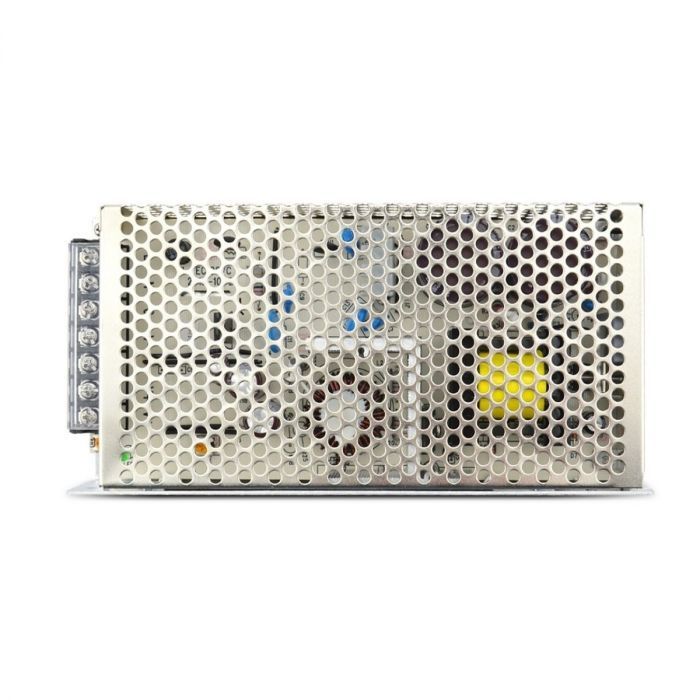

100W 12V DC Triac Dimmable Euchips Constant Voltage LED Driver DIM107H-12
Product Description
100W 12VDC CV Triac Driver
Item:DIM107H-12
Dimming Voltage:AC40-240V
Output Power: 100W
Output Current: 8.5A max
Output Voltage: DC12V
Size:200*98*39mm
Feature
Collect cut-phase signal by digital means, to ensure dimming consistancy between individuals
12VDC constant voltage output, max current MAX 8.5A
Dimming range from 40-240VAC, dimming curve smooth
Protections: short circuit, over load
100% full load burn-in test
Support leading edge(Triac) and Trailing edge(ELV) dimmer. To change input voltage via phase cut, in order to achieve perfect effect, please select dimmer properly
Has power indicate LED
Package Include:
1 Piece of 100W 12V DC Triac Dimmable Euchips Constant Voltage LED Driver DIM107H-12
