Working Temperature: -20~60 ℃
Working voltage: DC12V to 24V
Output: 3 channels
Transmission/receiving frequency: 433MHz
Remote distance: 10～15M
Controller dimension: L128 * W64 * H24 mm
Remote dimension: L85*W52*H7 MM
Packing size: L145 * W95 * H50mm
Net weight: 165g
Gross weight: 205g
Static power consumption: <1 W
Output current: <4A (each channel)
Output power: 12V: <144W, 24V: <288W
Package Included:

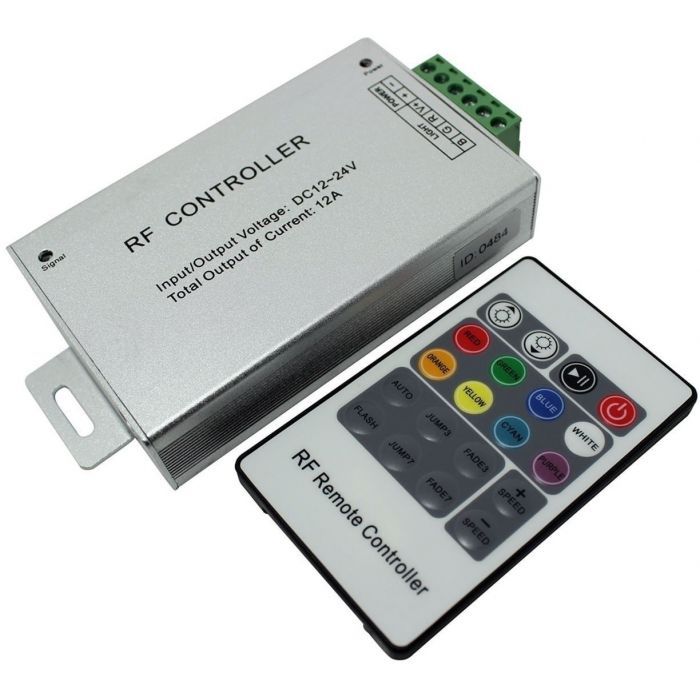

1 Piece of RGB LED Controller
1 Piece of RF Remote control
1 Piece of User Manual
NOTES:
1.) Only power with 12VDC Power Supply and connect to 12 Volt Light Strips or unit will be damaged.
Our Compact 50Watt and 24 Watt Power Supplies will plug into DC IN jack on left side of unit. Our Enclosed
Power Supplies can be direct wired to "+" and "-" terminals on removable Green connector on right side of unit.
2.) Wireless controller uses one 23A, 12V battery.
3.) Connect according to the above drawing and note that the Green Connectors can be unplugged from the unit.
4.) Red LED will come on when unit is receiving power, Green LED will flash when RF signal is received from handheld transmitter.
5.) UP and DOWN buttons will only work when unit is in one of the four color-changing (dynamic) modes.
6.) Each Controller has a handheld Remote matched to it and will only work with it's matched Remote. One Remote
cannot operate multiple Controllers.
7.) Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the Strips have to
connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 30 meters of additional LED Strips.
8.) Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
CE and RoHS approved
