DMX512 3P
24 channel 8 group
1A each channel max 3A
Standard DMX512 Signal
Automatically adapt to DC5V-24V
Product description
Size:24 Channel
Specifications:
1.Input/Output Voltage: DC5V-24V
2.Total Output of current:max72A
3.Output:1A each channel max 3A
4.Channel:24 channel 8 group
5.Controller:DMX512 3P
6.Working temperature: -20~60 celsius
7.Dimension:132x85x26mm
8.Weight:0.28Kg
Function:
1.Each DMX common controller occupied 24 DMX addresses,adopt coding switch set address.
It is a Binary numerical code switch is setting DMX original address code from 1 to 9.
1 is the lowest,and 9 is the highest.511 address codes could be setted in wall.
DMX original address code equal aggregate value from 1 to 0.
Dial the coding swich upwards(ON is setted 1),the value of bit can be gotted.On the contrary,the value of bit is 0.
For example:if you want to set 37 as the address code,you can only dial down the first,
the third and the sixth code switch value from 1 to 9 is 32+4+1,that is,the original address code of DMX512 is 37.
2.DMX signal can be received when coding switch FUN(10)=OFF.
Safety information:
1.The input voltage of this controller should be follow. The specifications,other high voltage would most probably destroy it.
2.Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram.
4.Warranty of this product is one year,in this period charge,but exclude the artificial situation of damaged.
Product Model: WS24LU3A
Package Included:

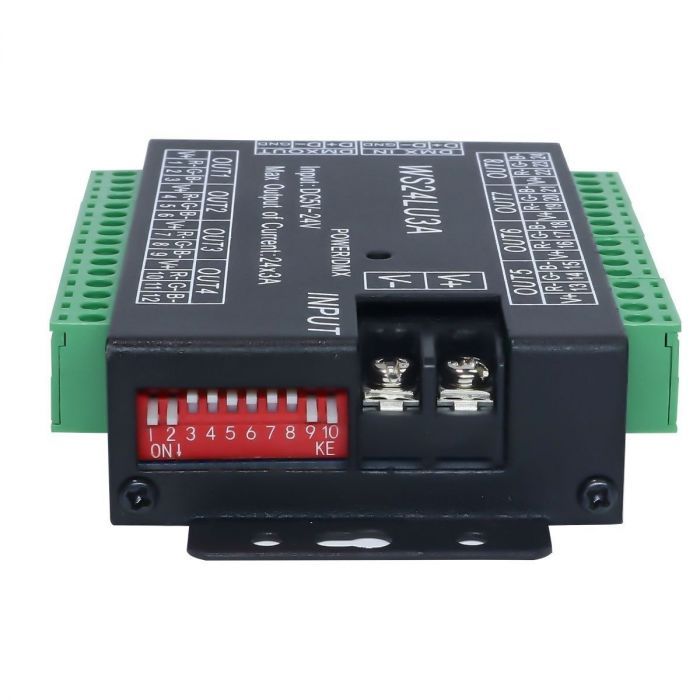

1 Piece of 24CH Easy DMX512 DMX Decoder LED Dimmer Controller DC5V-24V WS24LU3A
CE and RoHS approved
