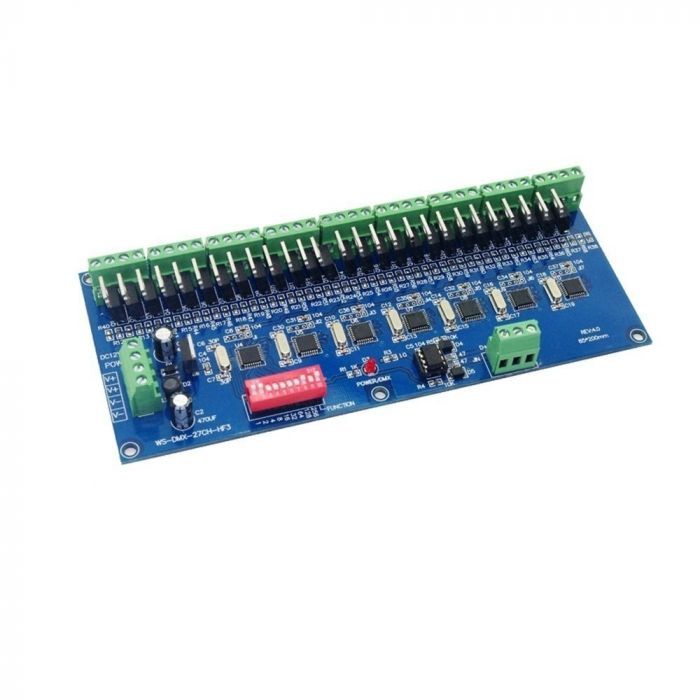

27CH DMX512 Decoder 27 Channel 9 Group DC 12V-24V WS-DMX-27CH-HF3 is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
Each DMX common controller occupied 27 DMX addresses, adopt coding switch set address.
It is a Binary numerial code switch which is setting DMX original address code from 1 to 9 , 1 is the lowest, and 9 is the highest, 511 address codes could be setted in all
DMX original address code equal aggregate value from 1 to 9, dial the coding switch upwards (ON is setted 1), the value of bit can be gotten , on the contrary , the value of bit is 0
DMX signal can be received when coding switch FUN(10)=OFF
There are several switches is ON at the same time , the great value is standard.Product description
LED DMX512 Controller,for LED Strip Module
Specification:
Input/Output Voltage: DC12V-24V
Total Output of current:27A
Output:1A each channel max 3A
Channel:27 channel 9 group
Controller:DMX512 XRL 3P
Dimension:200x85x25mm
Weight:0.23Kg
Product Model: WS-DMX-27CH-HF3
Package Included:
1 Piece of 27CH DMX512 Decoder 27 Channel 9 Group DC12V-24V WS-DMX-27CH-HF3
