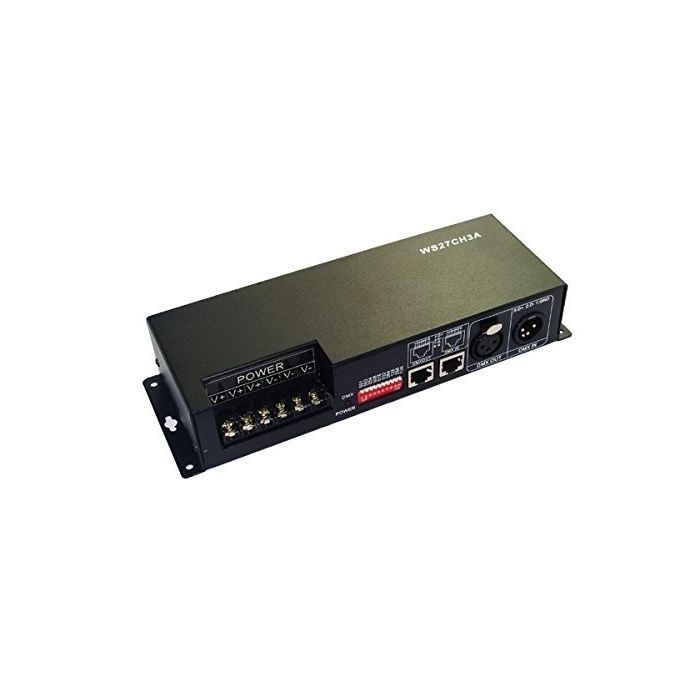

27CH DMX512 Decoder 9Group 81A For LED DC 12V-24V WS27CH3A

Be the first to review this product

$67.11

In stock

27CH DMX512 Decoder 9Group 81A For LED DC 12V-24V WS27CH3A is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Each DMX common controller occupied 27 DMX addresses, adopt coding switch set address.

It is a Binary numerial code switch which is setting DMX original address code from 1 to 9 , 1 is the lowest,

and 9 is the highest, 511 address codes could be setted in all.

DMX original address code equal aggregate value from 1 to 9, dial the coding switch upwards (ON is setted 1),

the value of bit can be gotten , on the contrary , the value of bit is 0.

DMX signal can be received when coding switch FUN(10)=OFF.

There are several switches is ON at the same time , the great value is standard.

Product description

LED DMX512 Controller,for LED Strip Module

Specification:

Input/Output Voltage: DC12V-24V

Total Output of current:81A

Output:each channel max 3A

Channel:27 channel 9 group

Dimension:242x100x45mm

Weight:0.7Kg

Product Model: WS27CH3A

Package Included:

1 Piece of 27CH DMX512 Decoder 9Group 81A For LED DC12V-24V WS27CH3A

CE and RoHS approved
