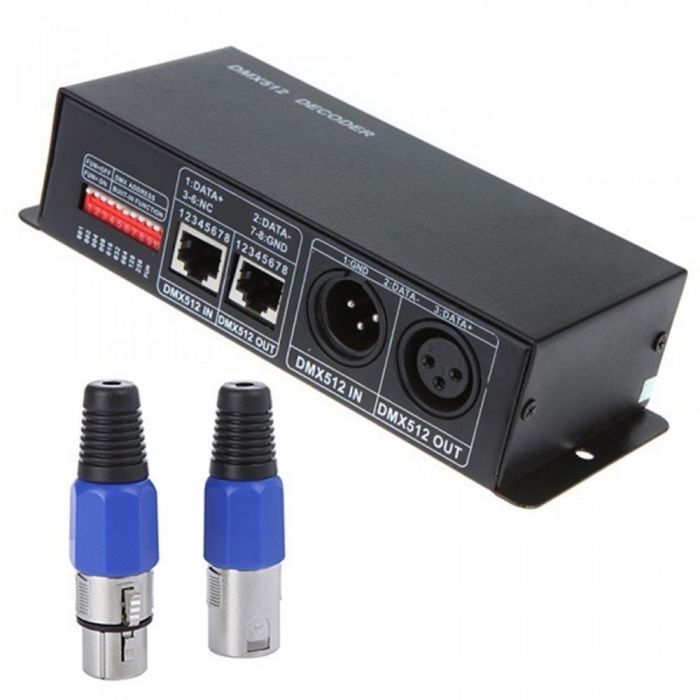

3 Channel DMX Decorder LED Controller for RGB 5050 3528 LED Ligh

Be the first to review this product

$14.73

In stock

SKU

3 Channel DMX Decorder LED Controller for RGB 5050 3528 LED

3 Channel DMX Decorder LED Controller for RGB 5050 3528 LED Ligh is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED.

You could connect with DMX digital console to achieve RGB dimming functions.

DMX address can be set through dip switch.

Two signal interfaces: XLR-3 and RJ45.

Up to 15 modes and 31 steps speeds for your options.

Product description

Color:black

DC 5V 12V-24V 3 Channel DMX Decoder LED Controller for RGB 5050 3528 LED Strip Light

Specifications:

Working Voltage: Pls Choose, DC 5V or DC 12V 24V.

Max output current: 8A (each channel)

Max output power: 288W~ 576W

Output: 3CH

Connection mode: Common Anode(+)

Working temperature: -20-60℃

Material: Metal

Product size: 16.5 * 6.5 * 4cm/ 6.5 * 2.6 * 1.6in

Product weight: 310g/ 10.9oz

Package size: 18 * 7.7 * 5cm/ 7.1 * 3.0 * 2.0in

Package weight: 400g/ 14.1oz

1. DMX signal can be received when FUN(10)=OFF.

2. Built-in function is activated when FUN(10)=ON, the following functions can be set using address codes DIP switch.

Note:

"1"="ON"; "0"= OFF

Package Included:

1 Piece of 3 Channel DMX Decorder LED Controller for RGB 5050 3528 LED Strip Light

CE and RoHS approved
