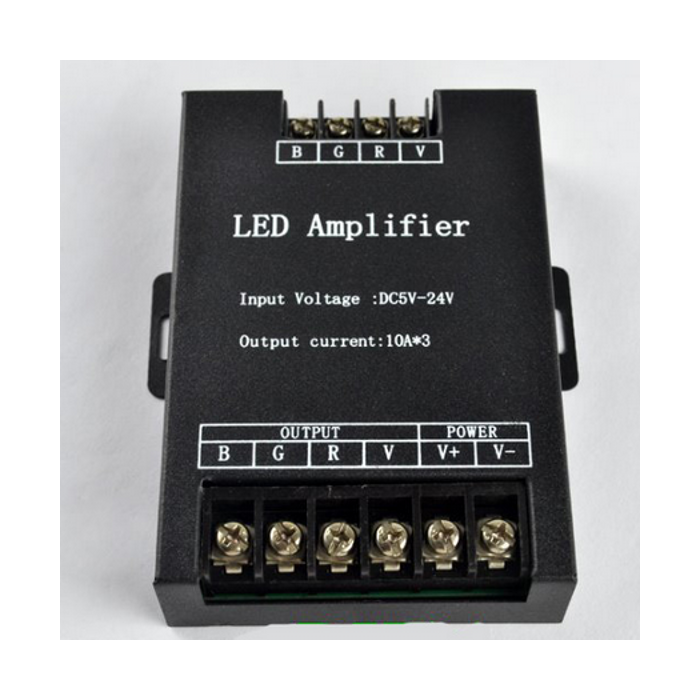

30A RGB LED Amplifier Signal Booster 5V 12V 24V Wall Mount Expand For RGB DMX Lights is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
Constant Voltage Power Repeater is suitable for all of our RGB controllers to expand power output. Used to extend your run of RGB 12/24v lighting product from your controller - Up to 300W@12vDC or 600W@24vDC Supports PWM (Pulse Width Modulation) control You can stack amps (2x repeaters connected = 16A/Ch) Input Power: DC5V ~ DC24V Output Power: 120(5v) 288W (12V) 576W (24V) You can just connect the output of our RGB Controller (DMX or IR) to the input of this controller and connect another power supply.
Then, you can connect and control up to 8A/Ch of output (8x rolls of our RGB flexible LED strip).
Power supply is not included; we always suggest using switching mode power supplies for any application that involves LED lighting.
Led Color
N/A
Mounting Options
Wall Mount, Other
Voltage
5v-24v
Wattage
10A/Ch
Power Rating Max Amps
3Ch @ 10A /Ch 30A Max
Output Power
120(5v) 288W (12V) 576W (24V)
Number Of Chanels
3
Rated Amps / Ch
8A-10A Max 10A
Power Input: Connection Type, Voltage, Amperage
Screw Terminal DC12V-DC24V (+)/(-) note for 12v strips use 12v input
Output Connection Type
Screw Terminal Strip
Weight / Item
380g
Product Size (L)x(W)x(H)
(L) 5.82" x(W) 3.42" x(H) .90" in (L148×W87×H23mm)
Comes With
RGB Indicators on outputs
Available Options
We can also get these in a constant current version 350mA and 700mA
Package Included:
1 Piece of 1 in 4 Out Waterproof RGB Amplifier LED Signal Booster 12V 12A
