DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol,
which adopt Manchester codes of digital transmission, with a whole grouping dimming, dimming addressing
inquiries, and other powerful state lighting dimming function. Compared with the 0-10v analogue dimming,
it’s more precise dimming, addressable, stable, focus control, easy installation and so on.
This product adopt a standard DALI dimming signal to digital LED dimming using standard IEC60929. LED
dimming with the traditional way of comparison, with adjustable light a wide range of diverse dimming,
dimming of high precision, check the current status LED(such as the current brightness, power intensity,
the minimum support brightness, address, etc.), easy distributed control and so on.
Technical parameters
Working temperature: -20~60℃
Supply voltage: AC85V-255V
Dimming signal: DALI (IEC60929)
Output way: constant current
Dimming range: 0.1%-100%
Gross weight: 203g
External dimension: L145Χ W95 Χ H50 mm
Connect mode: Spring type exemption screw connection mode, Terminals caliber 2.6mm2.
Output current: 350mA
Output power: <16.8W
Function Features
With a whole, grouping, addressing dimming.
Through the preset scene dimming.
The parameter of dimmer is flexible configuration.
Demand the parameter of dimmer is possible.
Function of parameter memory.
International standard, the DALI equipment from different manufacturers can be compatible.
The signal wire, regardless of positive and negative, do not need connect with alone, easy installation.
Package Included:

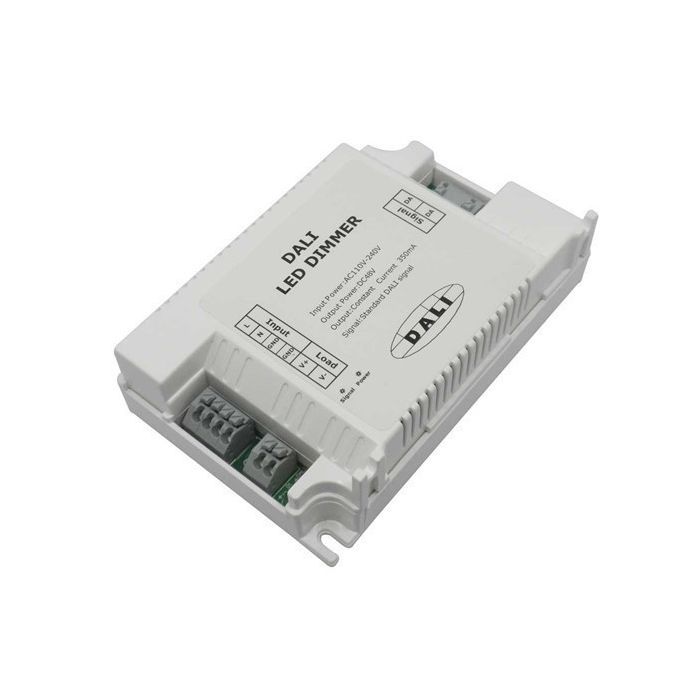

1 Piece of 350mA DALI LED Fluorescent Constant Current Dimming Dimmer
1 Piece of User's Manual
CE and RoHS approved
