DMX512 DECODER USER MANUAL
I.Specifications
Working temperature:-20-60
Supply voltage:DC 12-24V
Product size :L140*W60*H30mm
Net weight:120g
Gross weight:120g
Connecting Mode :Com350mA each color
II.Function
Each DMX common controller occupied 3 DMX addresses, adopt coding switch set address, it is a Binary numerical
code switch which is setting DMX original address code from 1 to 9,1 is the lowest and 9 is the highest,511 address
codes could be setted in all .DMX original address code equal aggregate value from 1 to 9,dial the coding switch
upwards(ON is setted 1),the value of bit can be gotten, on the contrary, the value of bit is 0. For example: if you want
to set 37 as the address code , you can only dial down the first ,the third and the sixth code switch value from 1 to 9 is
32+4+1 , that is ,the original address code of DMX512 is 37.
DMX signal can be received when coding switch FUN(10)=OFF.
when coding switch that FUN(10) is ON . its function is as follows:

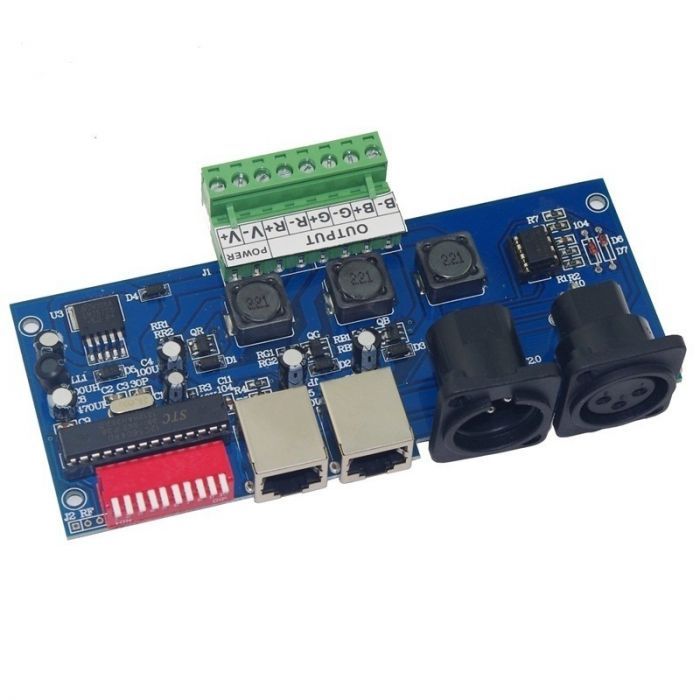

Product Model: WS-DMX-KA-HL-350MA-BAN
Package Included:
1 Piece of 350ma High-power 3CH DMX512 decoder controller WS-DMX-KA-HL-350MA-BAN
IV. Sfafety Information
The input voltage of this controller should be follow. The specifications , Other high voltage would most probably destroy it .
Never connect two wires directly in case of short circuit.
Lead wire should be connected corrctly according to colors that connecting diagram.
Warranty of this product is one year , in this period charge , but exclude the artificial situation of damaged.
V Connect Diagram
CE and RoHS approved
