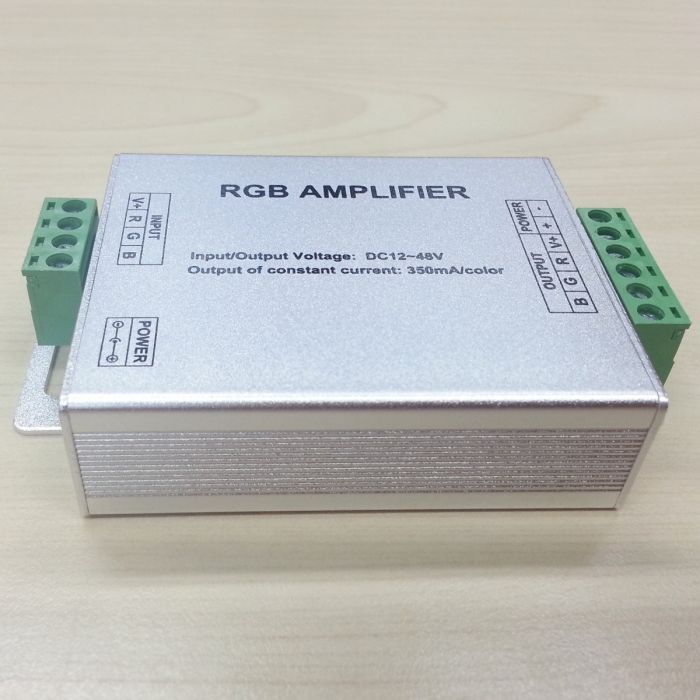

350mA LED Booster Repeater DC 12V to 48v Constant Current RGB Signal Amplifier
$10.13
In stock
SKU
350mA LED Booster Repeater DC 12V to 48v
350mA LED Booster Repeater DC 12V to 48v Constant Current RGB Signal Amplifier is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
LED Flexible Light Strip RGB Amplifier applies to all the voltage-controlled LED controller in our company,
it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number
of led will be more than twice, in theory, numerous RGB amplifiers can be connected.
Working temperature: -20~60 degrees
Supply voltage:DC12V~48V
Output: 3 channels
Connection mode: common anode
External dimension: L105*W65*H25mm
Packing size: L122*W85*H42mm
Carton size :L496*W272*H308mm , 78pcs/ctn
Net weight: 115g
Gross weight: 145g
Static power consumption: <1W
Output current: <350mA(each channel), (Note this item is Constant current RGB amplifier)
Output power: 12V:<12.6W, 48V:<50.4W
Package Included:
1 piece of Dc12-48v Constant Current 350ma LED RGB Signal Amplifier
1 piece of User's Manual
Typical Applications
In order to avoid short circuit between wires, connect input and output signal wires according to the silk-screen
prompts on the panel of RGB amplifier. Then connect power for RGB amplifier and make the RGB amplifier goes
hand in hand with the LED controller
CE and RoHS approved
