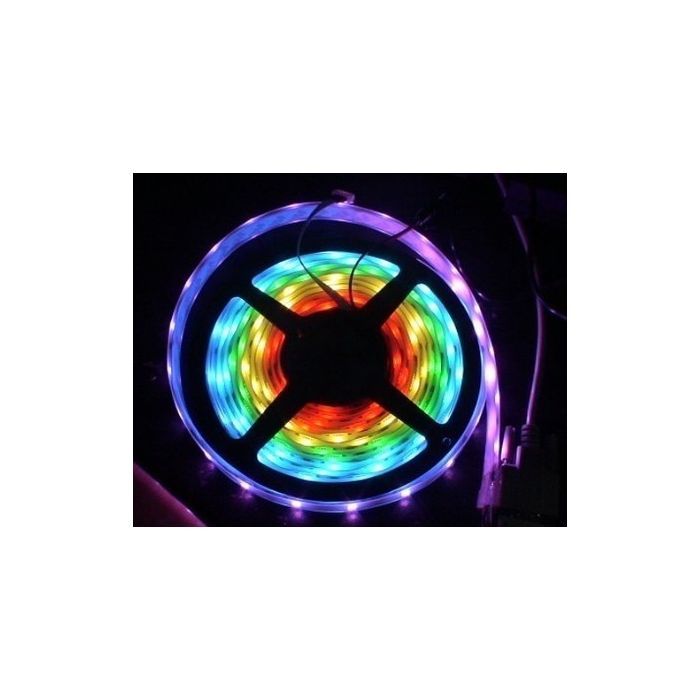

It is upgraded version of 32LEDs/meter lpd8806 led strip. There are 48 RGB LEDs per meter of this digital lpd8806
strip. Each LED can be controlled individually. The LPD8806 chip has built in 1.2 MHz high speed 7-bit PWM for each
channel, so that it can do 21-bit color per LED. You can set the color of each LED's red, green and blue. The LEDs are
controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 2 digital
output pins are required to send data down.
IC type: LPD8806
IC quantity: 24 ICs per meter, 5 meters length, total 120 ICs.
LED type: RGB SMD 5050 LED
LED quantity: 48 LEDs per meter, 5 meters length, total 240 LEDs.
Pixel quantity: 1 LED is 1 Pixel. 48 Pixel per meter, 5 meters length, total 240 Pixel.
Dimension: L5000 x W15 x T2.5 mm The width of the Non-Wateproof Strip's PCB is 15MM; The width of the waterproof
strip's PCB is 17mm.
Working voltage: DC 5V
Viewing angle: 120 degrees
PCB color: Pls choose
Power consumption: approx 14 watts per meter, 5 meters length, total is approx 70W.
Grey level: 256 levels
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Package Included:
1 Roll of 5 Meters (16.4ft) LPD8806 DC 5V Digital Addressable LED Strip 48LED/M 24ICs/M Programmable Light
You must use a 5V DC power supply to power these strips, do not use higher than 6V or you will destroy the entire strip.
CE and RoHS approved
