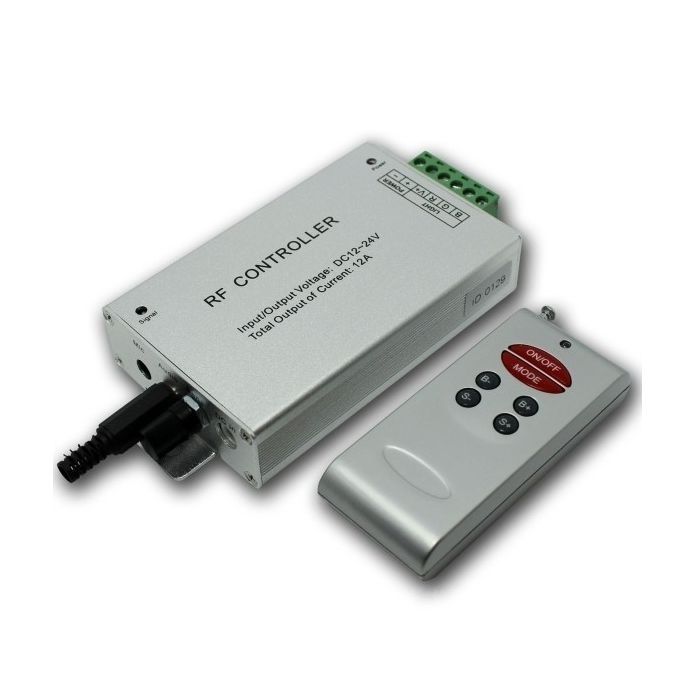

6 Button Remote RF Wireless Audio RGB LED Controller adopts the advanced micro control unit, it is used for controlling
a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp,
glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity
to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing,
stroboflash and other effects of change.
Working temperature: -20~60 celsius
Supply voltage: DC 12V to DC 24V
Output: 3 channels
Connectiing mode: common anode
Transmission/Receiving frequency: 433Mhz
External dimension: L130*W64*H24 mm
Packing size: L145*W95*H50 mm
Net weight: 185g
Gross weight: 220g
Static power consumption: <1W
Output current: <4A (each channel)
Output power: 12V:<144W, 24V:<288W
Package Included:
1 Piece of Audio RGB LED Controller
1 Piece of RF Remote
1 Piece of User's Manual
Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur
between connecting wire before you turn on the power;
2. Adopt RF control,there are six buttons altogether, and every key-press function is as follows"
ON/OFF: any state to close load output;
MODE:is the style/color function key, could choose different color changes, 13 total;
Button "B+": Brightness control of the output signal each press changing speed +1, 256 total.
Button "B-": each press brightness changing -1
Button "S+": each press changing speed +1, 100 total.
Button "S-":each press changing speed -1.
Note:
When the external microphone input and audio signal input at the same time, system will process the audio signal.
CE and RoHS approved
