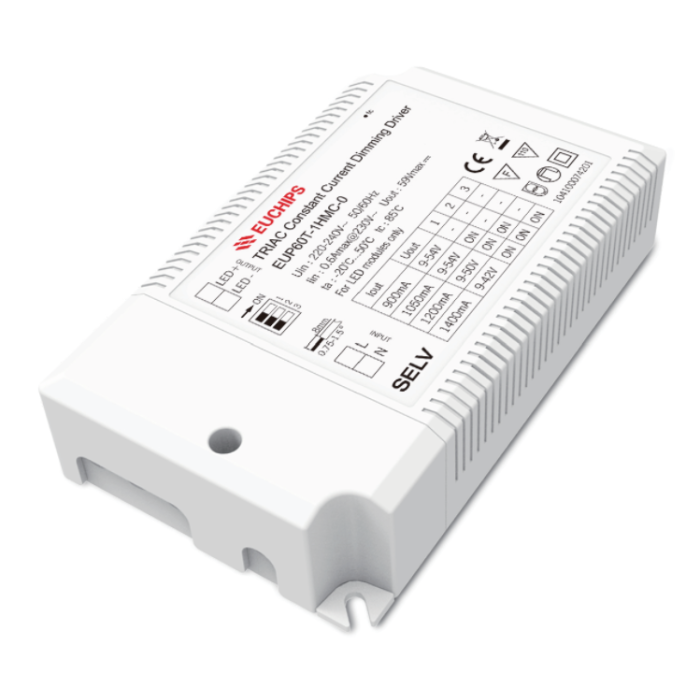

60W Phase-cut Constant Current Euchips LED Dimmable Driver EUP60T-1HMC-0
Short Description:
Item No.:EUP60T-1HMC-0
Input Voltage:200-240VAC
Output Current:900/1050/1200/1400mA*1CH
Output Power:60W
Dim Mode:Triac/ELV
Features
Single-channel constant current output, selected by Dip-switch
Support Leading edge (Triac) and Trailing edge (ELV) Dimmer.
Dimming range from 40VAC to 240C.
Dimming effect smooth, no flicker
High efficiency up to 89%
Short circuit protection
Suitable for indoor LED lighting application, down light, panel light, and so on
Package Include:
1 Piece of 60W Phase-cut Constant Current Euchips LED Dimmable Driver EUP60T-1HMC-0
1 Piece of Product's Manual
Cautions
The product shall be installed and serviced by a qualified person.
This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure.
Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
Please check if the output voltage and current of any LED power supplies used comply with the requirement
of the product.
Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
For safety consideration, PVC or rubber cord of 0.75-1.5mm2 is recommended for input and output terminal(s) .
Flat power cord is not suitable. Ensure all wire connections and polarities are
correct before applying power to avoid any damages to the LED lights.
If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself
CE and RoHS approved
