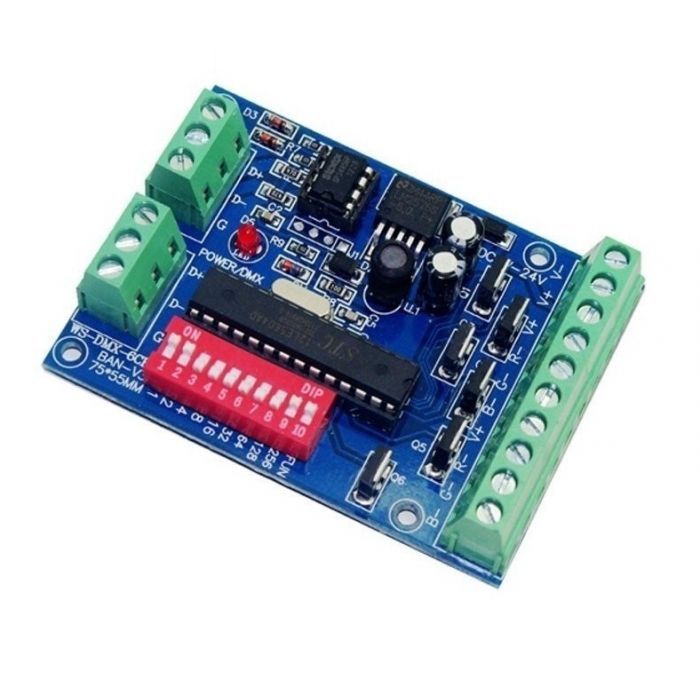

6CH Easy DMX512 Controller Decoder DC 5V-24V WS-DMX-6CH-BAN-V3
$15.26
In stock
SKU
6CH Easy DMX512 Controller Decoder DC 5V-24V WS-DMX-6CH-BAN-V3
6CH Easy DMX512 Controller Decoder DC 5V-24V WS-DMX-6CH-BAN-V3 is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Each DMX common controller occupied 6 DMX addresses, adopt coding switch set address.
It is a Binary numerial code switch which is setting DMX original address code from 1 to 9 , 1 is the lowest,
and 9 is the highest, 511 address codes could be setted in all
DMX original address code equal aggregate value from 1 to 9, dial the coding switch upwards (ON is setted 1),
the value of bit can be gotten , on the contrary , the value of bit is 0
DMX signal can be received when coding switch FUN(10)=OFF
There are several switches is ON at the same time , the great value is standard.
Product description
Specification:
Supply voltage:DC5V-24V
Product size: L75*W55*H15mm
Output: CMOS drain-open output
Connecting Mode: Common anode
Weight:68g
Max output current: 4A each color
Product Model: WS-DMX-6CH-BAN-V3
Package Included:
1 Piece of 6CH Easy DMX512 Controller Decoder DC5V-24V WS-DMX-6CH-BAN-V3
CE and RoHS approved
