AP105 Leynew Led Controller High Speed Current Decoder Power Extender Dimmer Control

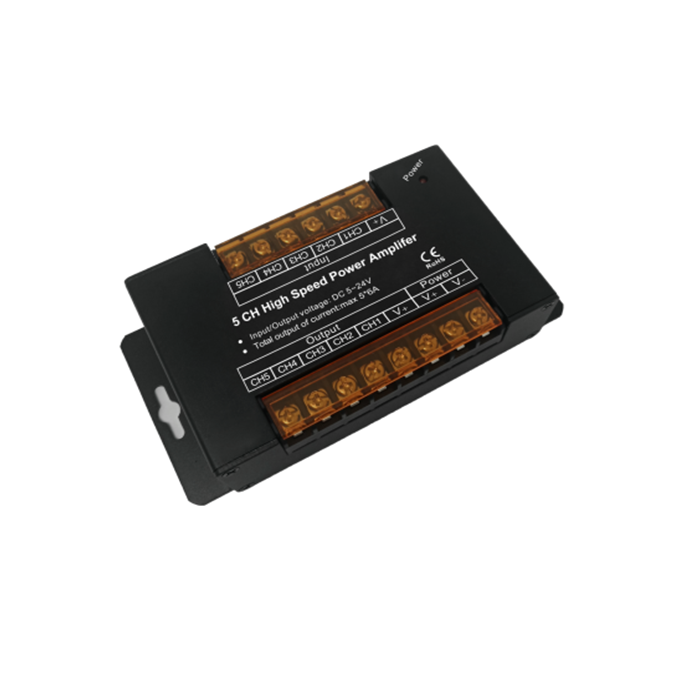

High Speed High Current Power Extender AP105

High current power expander for PWM LED controller, can amplify the power of the LED controller,

each additional expander can be connected up to three times the number of LED lights, and can be cascaded.

Theoretically, unlimited power expanders can be connected. Convenient for different voltage, high power and

low power LED lamps and lanterns unified control. No matter it is our products or other companies' products,

as long as it is PWM control and the voltage is suitable, you can use this series of power expander. Using optical

coupling design, it can achieve very low delay time to ensure synchronization with the host computer when

cascading multiple units.

Technical Parameters:

Working Temperature: -20-60 ℃

Working Voltage: DC5V-24V

Signal Voltage: DC5V-24V

Input Signal: PWM

Dimming Range: 0.1%-100%

Net Weight: 270g

Gross Weight: 310g

Product Size:L147*W70*H34 mm

Package Size:L152mm*75*75mm

Connection Terminal: Screw reinforced wiring method, terminal diameter 7mm

Public Terminal: Common Anode

Output Current: <30A

Output Power: 5V:<150W,12V:<360W,24V:<720W

Package Included:

1 Piece of AP105 Leynew Led Controller High Speed Current Decoder Power Extender Dimmer Control



CE and RoHS approved
