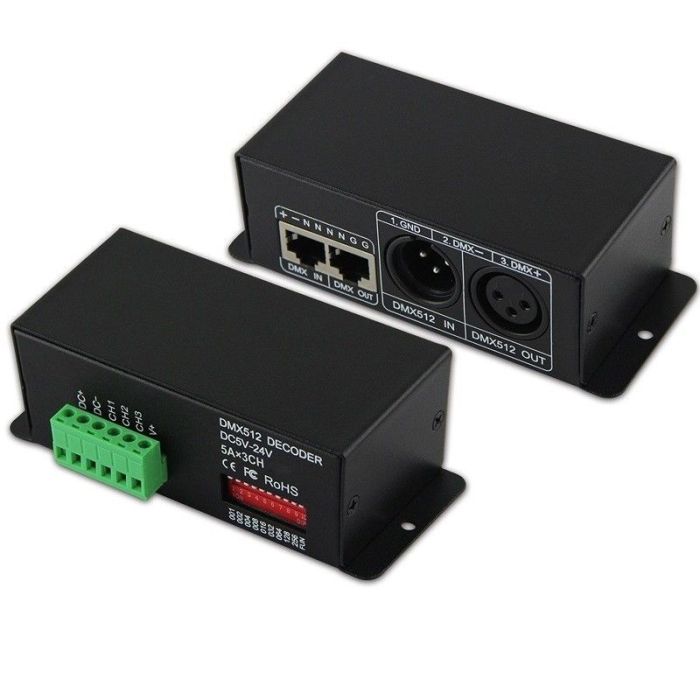

BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder
$22.45
In stock
SKU
BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder
BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Feature function:
Input standard DMX512 protocol，Address can be set by DIP.
Automatically adapt input voltage DC5V-24V.
3 output channels, 256 scale each, RGB driving control.
10 self-changing modes, 8 speed levels.
Max output 5A*3CH.
Product parameter:
Product Model:BC-803
Input voltage:DC5V-24V
Max load current:5A/CH×3
Output Power:180W/360W(12V/24V)
Output Scale level:256 levels
Input signal:DMX512/1990
Output signal:3 constant voltage PWM
Output DMX Channel:3Chs or 4Chs (4th CH is shutter strobe)
DMX512 socket: Standard XLR-3R，RJ45 port
Product Dimension:L125×W52×H40(mm)
Package Size :L135×W70×H50(mm)
Weight (G.W) :320g
Package Content:
1 Piece of BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder
1 Piece of User's manual
CE and RoHS approved
