BC-831-CC Bincolor Led Controller DMX512 Decoder Dimmer Driver
$32.15
In stock
SKU

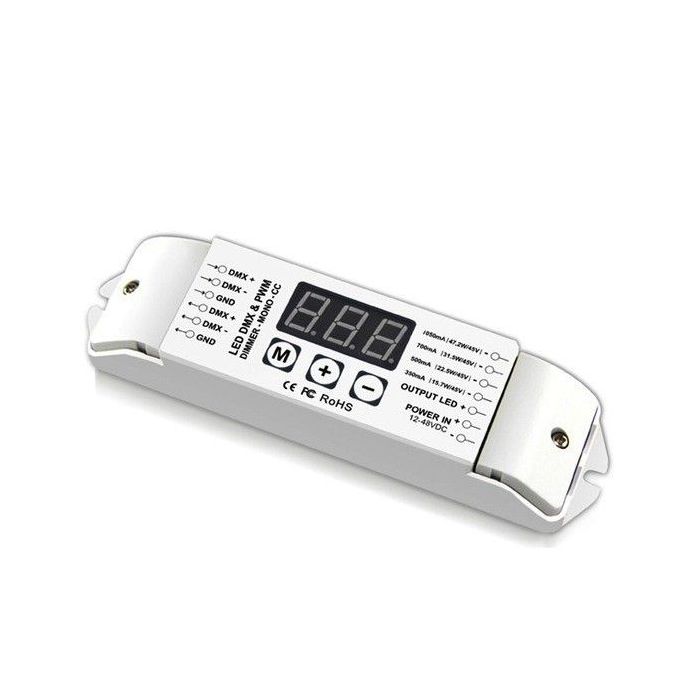

BC-831-CC Bincolor Led Controller DMX512 Decoder Dimmer Driver
BC-831-CC Bincolor Led Controller DMX512 Decoder Dimmer Driver is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Feature function:
Automatically adapt input voltage DC12V-24V(CV)
Input standard DMX512 signal; 3-digital-display shows DMX address code..
1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
DMX Master mode, Slave mode available.
30 changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Product Model:BC-831-CC
Input voltage:DC12V-DC48V
Max load current plz choose:350mA or 500mA or 750mA or 1050mA
Max Output Power:13pcs 3W LED
Grey Scale:4096 levels×1
Input Signal: DMX512/1990
Output Signal:Constant Current PWM
Decode Channel: 1CH
DMX512 socket:Terminal Block
Dimension : L176×W46×H30(mm)
Weight (G.W):168g
Package Content:
1 Piece of BC-831-CC Bincolor Led Controller DMX512 Decoder Dimmer Driver
1 Piece of User's manual
CE and RoHS approved
