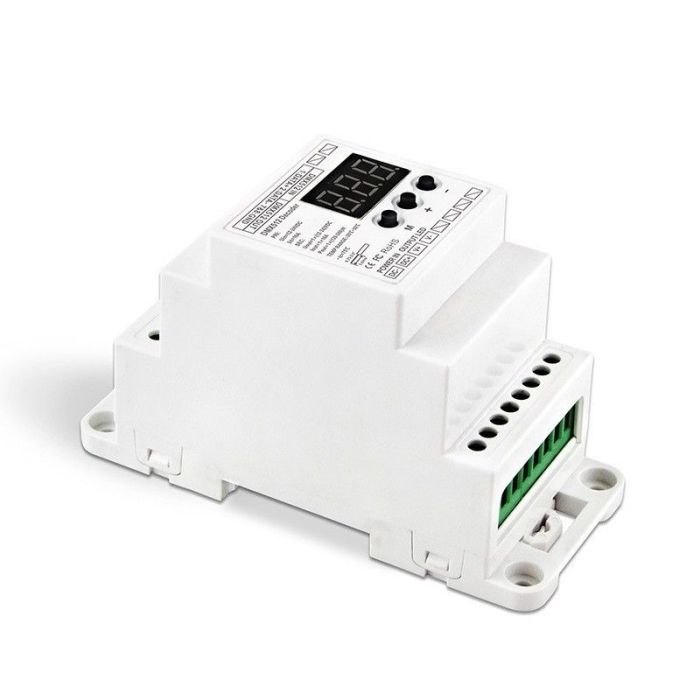

BC-831-DIN-RJ45 Bincolor Led Controller DIN Rail DMX512 Decoder Digital Tube Display
$25.36
In stock
SKU
BC-831-DIN-RJ45 Bincolor Led Controller DIN Rail DMX512 Decoder
BC-831-DIN-RJ45 Bincolor Led Controller DIN Rail DMX512 Decoder Digital Tube Display is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Welcome to use the Constant Voltage DMX512 Deloped coder which is deveonly for constant voltage LED lamps.
It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.
One channel output, max 10A output each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX
decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.
Specifications:
Model: 1CH Constant Voltage decoder
Input voltage: DC12V-DC24V
Max load current: 1CH×10A
Max Output Power: 120W(12V)/240W(24V)
Grey Scale: 4096 levels×1
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM
Decode Channel: 1CH
DMX512 socket : RJ45
Dimension: L111×W46×H66(mm)
Weight (G.W) : 130g
Package Content:
1 Piece of BC-831-DIN-RJ45 Bincolor Led Controller DIN Rail DMX512 Decoder Digital Tube Display
1 Piece of User's manual
CE and RoHS approved
