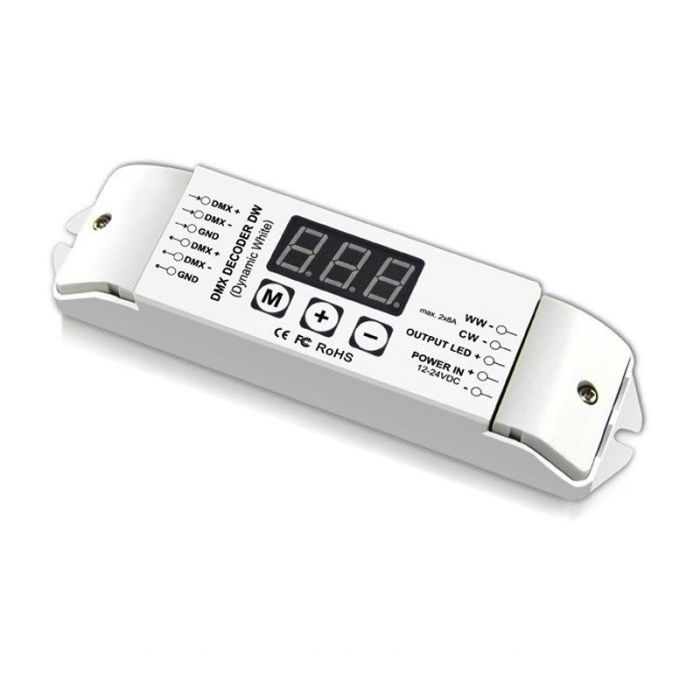

BC-832 Bincolor Led Controller 12V-24V PWM CV DMX512/1990 Decoder 2CH
$31.21
In stock
SKU
BC-832 Bincolor Led Controller 12V-24V PWM CV DMX512/1990
BC-832 Bincolor Led Controller 12V-24V PWM CV DMX512/1990 Decoder 2CH is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Feature function:
Automatically adapt input voltage DC12V-24V.
Input standard DMX512 signal; 3-digital-display shows DMX address code..
2(BC-832)/3(BC-833)/4(BC-834) channels output; 4096 grey scales each;
logarithmic dimming; lamplight soft& stable without strobe flash.
DMX Master mode, Slave mode available.
4 (BC-832)/8 (BC-833)/8 (BC-834)color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
Power loss memory function.
BC-832
Product Model:BC-832
Input voltage:DC12V-DC24V
Max load current:8A/CH×2
Max Output Power:192W(12V)/384W(24V)
Grey Scale:4096 levels×2
Input Signal:DMX512/1990
Output Signal:Constant Voltage PWMX2
Decode Channel:2CH
DMX512 socket:Terminal Block
Dimension:L176×W46×H30(mm)
Weight (G.W):170g
Package Content:
1 Piece of BC-832 Bincolor Led Controller 12V-24V PWM CV DMX512/1990 Decoder 2CH
1 Piece of User's manual
CE and RoHS approved
