BC-833-DIN-RJ45 Bincolor Led Controller DIN Rail 3CH DMX512/1990 Decoder

Be the first to review this product
$26.36
In stock
SKU
BC-833-DIN-RJ45 Bincolor Led Controller DIN Rail 3CH DMX512/1990
Add to Compare

BC-833-DIN-RJ45 Bincolor Led Controller DIN Rail 3CH DMX512/1990 Decoder is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

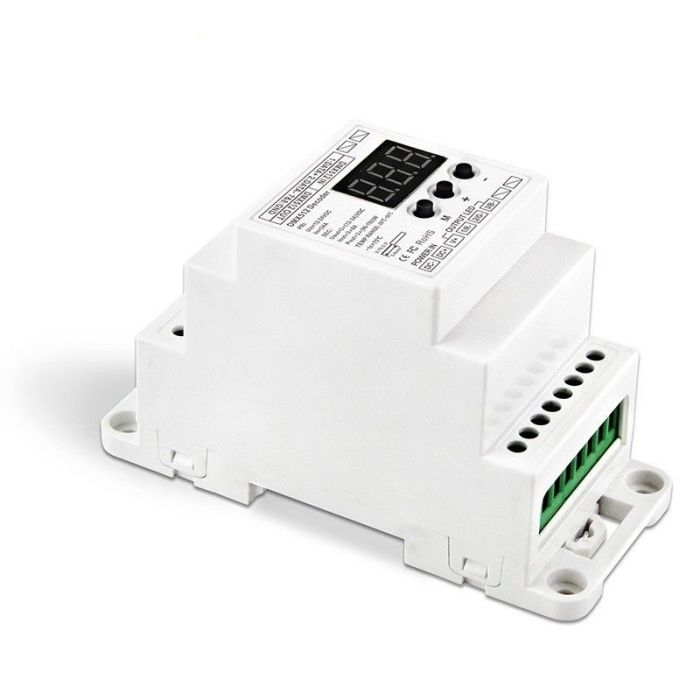

main product photo

Specifications:

Model: 3CH Constant Voltage decoder

Input voltage: DC12V-DC24V

Max load current: 3CH×8A

Max Output Power: 288W(12V)/576W(24V)

Grey Scale: 4096 levels×3

Input Signal: DMX512/1990

Output Signal: Constant Voltage PWM

Decode Channel: 3CH

DMX512 socket: RJ45

Dimension:  L111×W46×H66(mm)

Weight (G.W): 133g

Feature function:

Automatically adapts input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address code.

3 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.

DMX Master mode, slave mode available.

Built-in 8 color changing modes and 10 speed scales.

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Wrong wiring protection at DMX port,over current protection and short circuit protection.

The DIN rail style design facilitates the installation of large-scale projects.

Package Content:

1 Piece of BC-833-DIN-RJ45 Bincolor Led Controller DIN Rail 3CH DMX512/1990 Decoder

1 Piece of User's manual

Bincolor_Controller_BC_833_DIN_RJ45_1
Bincolor_Controller_BC_833_DIN_RJ45_2
Bincolor_Controller_BC_833_DIN_RJ45_3
Bincolor_Controller_BC_833_DIN_RJ45_4
Bincolor_Controller_BC_833_DIN_RJ45_5
Bincolor_Controller_BC_833_DIN_RJ45_6

CE and RoHS approved
