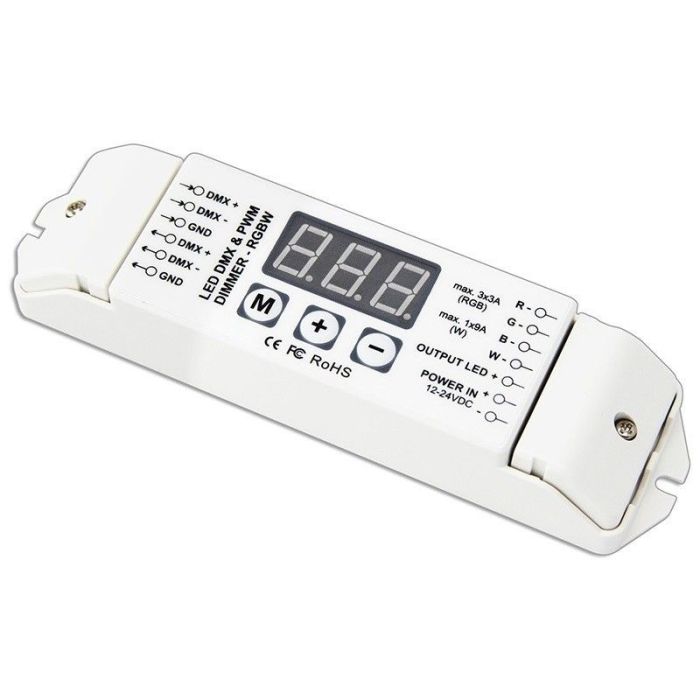

BC-834 Bincolor Led Controller 12V-24V PWM CV DMX512/1990 Decoder
$33.15
In stock
SKU
BC-834 Bincolor Led Controller 12V-24V PWM CV DMX512/1990
BC-834 Bincolor Led Controller 12V-24V PWM CV DMX512/1990 Decoder is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Feature function:
Automatically adapt input voltage DC12V-24V.
Input standard DMX512 signal; 3-digital-display shows DMX address code..
2(BC-832)/3(BC-833)/4(BC-834) channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
DMX Master mode, Slave mode available.
4 (BC-832)/8 (BC-833)/8 (BC-834)color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
Power loss memory function.
BC-834
Product Model:BC-834 4CH DMX512 decoder
Input voltage:DC12V-DC24V
Max load current:RGB: 3A×3CH W: 9A×1CH
Max Output Power:RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216W(24V)
Grey Scale:4096 levels×4
Input Signal:DMX512/1990
Output Signal:Constant Voltage PWM×4
Decode Channel:4CH
DMX512 socket:Terminal Block
Dimension:L176×W46×H30(mm)
Weight (G.W):175g
Package Content:
1 Piece of BC-834 Bincolor Led Controller 12V-24V PWM CV DMX512/1990 Decoder
1 Piece of User's manual
CE and RoHS approved
