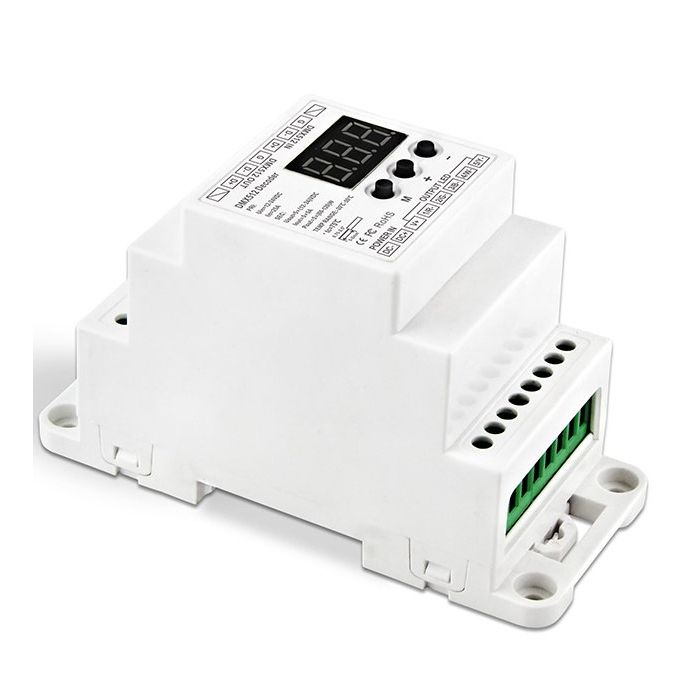

BC-835-DIN Bincolor Led Controller DIN Rail 5CH CV Decoder

$30.24
In stock
SKU
BC-835-DIN Bincolor Led Controller DIN Rail

For more Bincolor Controller, pls check here: https://www.vipfactoryprice.com/bincolor-controller.html

If you need COB Led Strip, pls check here: https://www.vipfactoryprice.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vipfactoryprice.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vipfactoryprice.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here:  https://www.vipfactoryprice.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vipfactoryprice.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on vipfactoryprice.com

BC-835-DIN Bincolor Led Controller DIN Rail 5CH CV Decoder

DIN Rail 5CH Constant Voltage Decoder(BC-835-DIN)

1. Automatically adapts input voltage DC12V-24V.

2. Input standard DMX512 signal; 3-digital-display shows DMX address code.

3. 5 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.

4. DMX Master mode, slave mode available.

5. Built-in 8 color changing modes and 10 speed scales.

6. Indicator of the DMX512 signal receiving status.

7. Power loss memory function.

8. Wrong wiring protection at DMX port,over current protection and short circuit protection.

9. The DIN rail style design facilitates the installation of large-scale projects.

Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.

user can choose 1~5 output channels, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to

connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.

Feature function:

1. Automatically adapts input voltage DC12V-24V.

2. Input standard DMX512 signal; 3-digital-display shows DMX address code.

3. 5 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.

4. DMX Master mode, slave mode available.

5. Built-in 8 color changing modes and 10 speed scales.

6. Indicator of the DMX512 signal receiving status.

7. Power loss memory function.

8. Wrong wiring protection at DMX port,over current protection and short circuit protection.

9. The DIN rail style design facilitates the installation of large-scale projects.

Package Included:

1 Piece of BC-835-DIN Bincolor Led Controller DIN Rail 5CH CV Decoder

BC_835_DIN_812_1

CE and RoHS approved
