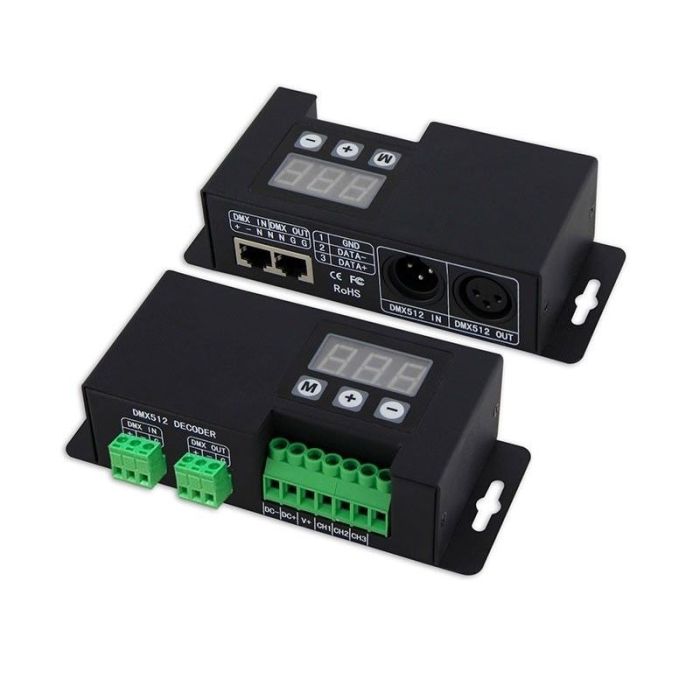

BC-853 Bincolor Led Controller 3CH Dmx Master CV PWM DMX512 Decoder Driver

Be the first to review this product

$35.12

In stock

SKU

BC-853 Bincolor Led Controller 3CH Dmx Master CV PWM DMX512

BC-853 Bincolor Led Controller 3CH Dmx Master CV PWM DMX512 Decoder Driver is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant

voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard

DMX512/1990 signal to PWM signal. User can choose 1~3 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.

Basic Features:

Automatically adapts input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address.

3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.

Support master mode or slave mode;

8 color changing modes and 10 speed scales in master mode .

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Over current protection and short circuit protection.Wrong wiring protection at DMX prot.

Multiple DMX512 signal interface.

Specifications:

BC-853 3CH DMX512 Decoder

Product Model:3CH DMX512 Decoder

Input voltage:DC12V-DC24V

Max load current:RGB:6A×3CH

Max output power:RGB:72W×3CH(12V)/RGB:144W×3CH(24V)

Grey Scale:4096 levels×3

Input Signal:DMX512/1990

Output Signal:Constant Voltage PWM×3

Decode Channel:3CH

DMX512 socket:XLR-3R port/ RJ45 port/terminal block

Dimension:L157×W65×H40(mm)

Weight (G.W):450g

Package Content:

1 Piece of BC-853 Bincolor Led Controller 3CH Dmx Master CV PWM DMX512 Decoder Driver

1 Piece of User's manual

CE and RoHS approved
