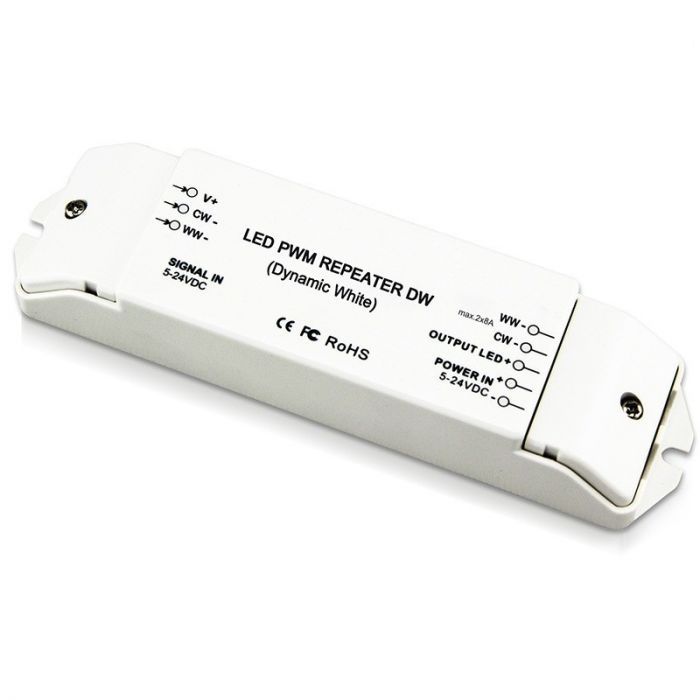

BC-962 Bincolor Led Controller High Frequency 2CH Power Repeater DC5-24V

$23.45
In stock
SKU
BC-962 Bincolor Led Controller High Frequency 2CH Power

BC-962 Bincolor Led Controller High Frequency 2CH Power Repeater DC5-24V is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion,

it accepts PWM control, unlimited quantity of power repeater to be connected theoretically. Also,

the power repeater of constant voltage model and constant current model could be connected freely,

suitable for synchronized controlling on different LED lamps.

Feature function:

Common anode input and output.

Sustain high frequency common anode PWM input signal.

Work with RGB controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.

Over current protection and short circuit protection.

3000V optoelectronic isolation.

Model Number: BC-962

Input power: DC5V-DC24V

Maximum load current: 8A/CH × 2

Output signal: Constant voltage PWM

The maximum output power: 80W(5V)192W(12V)384W(24V)

Product Size: L176×W46×H30(mm)

Packing size:  L178×W48×H35(mm)

Product weight : 120g

Package Included:

1 Piece of BC-962 Bincolor Led Controller High Frequency 2CH Power Repeater DC5-24V


Bincolor_Controller_BC_962_1
Bincolor_Controller_BC_962_2
Bincolor_Controller_BC_962_3
Bincolor_Controller_BC_962_4
Bincolor_Controller_BC_962_5
Bincolor_Controller_BC_962_6
Bincolor_Controller_BC_962_7

CE and RoHS approved
