BC-965-DIN Bincolor Led Controller Power Repeater DIN Rail DC5V-24V Amplifier

Be the first to review this product
$22.45
In stock
SKU
BC-965-DIN Bincolor Led Controller Power Repeater DIN Rail
Add to Compare

BC-965-DIN Bincolor Led Controller Power Repeater DIN Rail DC5V-24V Amplifier is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

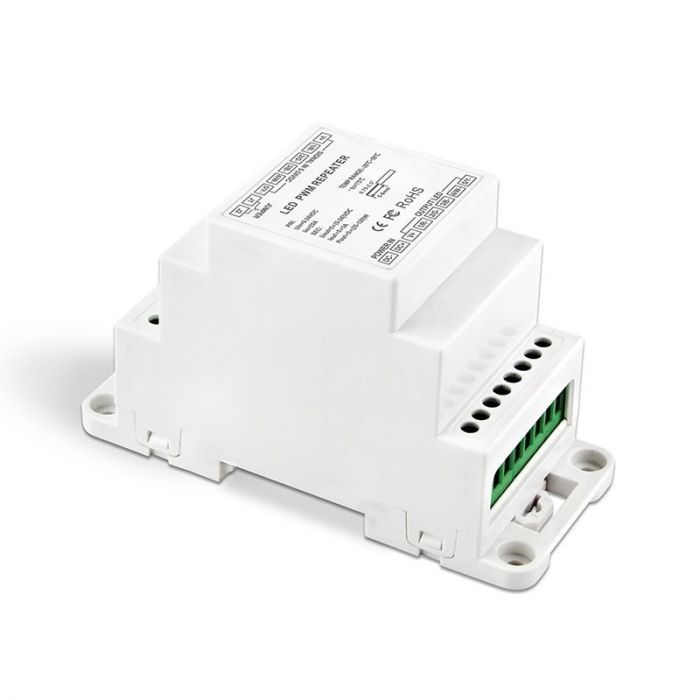

main product photo

DIN Rail LED Power Repeater is suitable for all BINCOLOR power-output style controllers' power expansion,

it accepts PWM SIGNAL, unlimited quantity of power repeater to be connected theoretically. Also,

the power repeater of constant voltage model and constant current model could be connected freely,

Suitable for synchronous control of different LED lamps.

Specifications:

Model: 5CH Power Repeater（BC-965-DIN）

Input voltage: DC5V-DC24V

Max Load Current: 5A×5CH  Max 25A

Output Signal: Constant  Voltage PWM

Max output power:125W/300W/600W(5V/12V/24V)

Dimension:  L111×W46×H66(mm)

Weight (G.W) : 130g

Feature function:

Common anode input and output.

Sustain high frequency common anode PWM input signal.

Work with LED controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.

Over current protection and short circuit protection.

Optical isolation function, controller damage will not affect the repeater.

Output channels can be output independently or synchronously.

The DIN rail style facilitates the installation of large-scale projects.

Package Included:

1 Piece of BC-965-DIN Bincolor Led Controller Power Repeater DIN Rail DC5V-24V Amplifier


Bincolor_Controller_BC_963_DIN_1
Bincolor_Controller_BC_963_DIN_2
Bincolor_Controller_BC_963_DIN_3
Bincolor_Controller_BC_963_DIN_4

Bincolor_Controller_BC_965_DIN_5
Bincolor_Controller_BC_965_DIN_6

CE and RoHS approved
