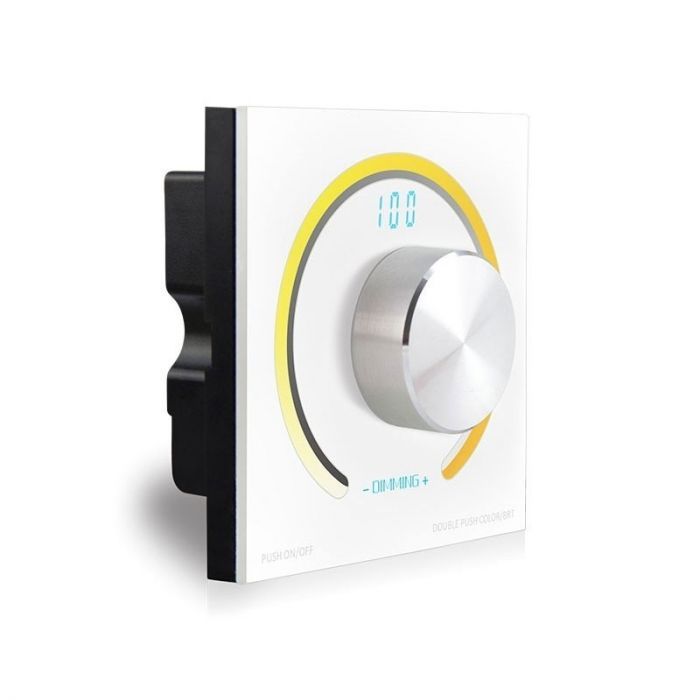

BC-K2 Bincolor Led Controller Switch Knob Wall Mounted Led CCT Rotary Dimmer

$22.45
In stock
SKU
BC-K2 Bincolor Led Controller Switch Knob Wall Mounted Led

BC-K2 Bincolor Led Controller Switch Knob Wall Mounted Led CCT Rotary Dimmer is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Feature function:

Automatically adapt to LED light which works from DC12V-24V.

Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.

Workable for dimming, color temperature, RGB control.

2048 grey scales per channel, led lamp is more rich and vivid without flash.

Optional output frequency 0.5K、1K、2K、4K、8K.

Three-digital-display indicates the current setting value, easy operation, the default parameter can be restored by manual.

Can compatible with T series wireless remote control in long distance.

Using Encoder rotary knob, instead of potentiometer, more durable.

Product parameter:

Model: K2(CCT) Rotary dimmer controller

Input Voltage: DC12V-24V

Load Current: 4A×2CH Max 8A

Optional output frequency: 0.5K、1K、2K、4K、8K

Grey Scale Level: 2048×2

Dimming Range: 1%-100%

Max Output Power: 96W(12V)/192W(24V)

Working Temperature: -20°C~55°C

Dimensions: L86×W86×H36(mm)

Weight(N.W): 130g

Package Included:

1 Piece of BC-K2 Bincolor Led Controller Switch Knob Wall Mounted Led CCT Rotary Dimmer


Bincolor_Controller_BC_K2_1
Bincolor_Controller_BC_K2_2
Bincolor_Controller_BC_K2_3
Bincolor_Controller_BC_K2_4
Bincolor_Controller_BC_K2_5
Bincolor_Controller_BC_K2_6

CE and RoHS approved
