Bincolor Led Controller BC-632 32CH DMX-PWM Decoder 5V-24V Switch Driver

Be the first to review this product
$129.31
In stock
SKU
Bincolor Led Controller BC-632 32CH DMX-PWM Decoder 5V-24V
Add to Compare

Bincolor Led Controller BC-632 32CH DMX-PWM Decoder 5V-24V Switch Driver is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

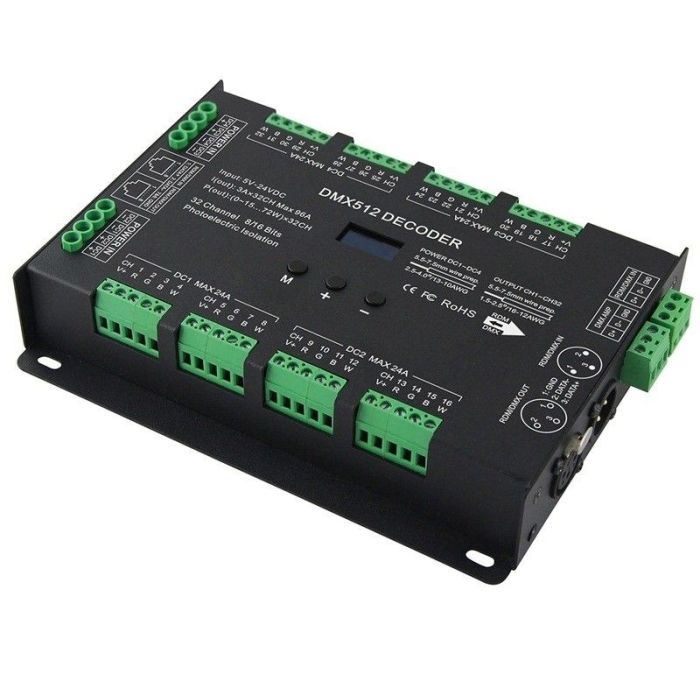

main product photo

This DMX512 Constant Voltage Decoder is developed only for constant voltage LED lamps.

It adopts advanced micro-computer control technology to transfer DMX512/1990 signal to PWM signal.

32 channels output, max 3A each channel, 65536 gray scales, workable for single color, color temperature, RGB and RGBW led lamp.

Basic Features:

Support RDM function.

Optional output frequency 1K,2K,4K,8K.

Output gamma curve can be adjusted.

DMX decoding supports 8 bits or 16 bits.

OLED display.

32 channels output.

Power-off data saved function.

Specifications:

Model: BC-632 (32CH DMX512 Decoder)

Input voltage: DC5V-24V

Max load current: 3A/CHx32, Max 96A

Max output power: 480W(5V)/1152W(12V)/2304W(24V)

Scale Levels: 65536 levels

Input signal: DMX512/RDM, 8Bit,16Bit optional

Output Signal: Constant Voltage PWMx32CH

Decode channel: 32CH

DMX512 socket : XLR-3R/ Rj45/ Terminal block

Control mode:DIM /CT /RGB /RGBW 4 modes switch

Dimension:L195 x W145 x H38(mm)

Weight (G.W):810g

Package Content:

1 Piece of Bincolor Led Controller BC-632 32CH DMX-PWM Decoder 5V-24V Switch Driver

1 Piece of User's manual

Bincolor_Controller_BC_632_1
Bincolor_Controller_BC_632_2
Bincolor_Controller_BC_632_3
Bincolor_Controller_BC_632_4
Bincolor_Controller_BC_632_5
Bincolor_Controller_BC_632_6
Bincolor_Controller_BC_632_7
Bincolor_Controller_BC_632_8
Bincolor_Controller_BC_632_9

CE and RoHS approved
