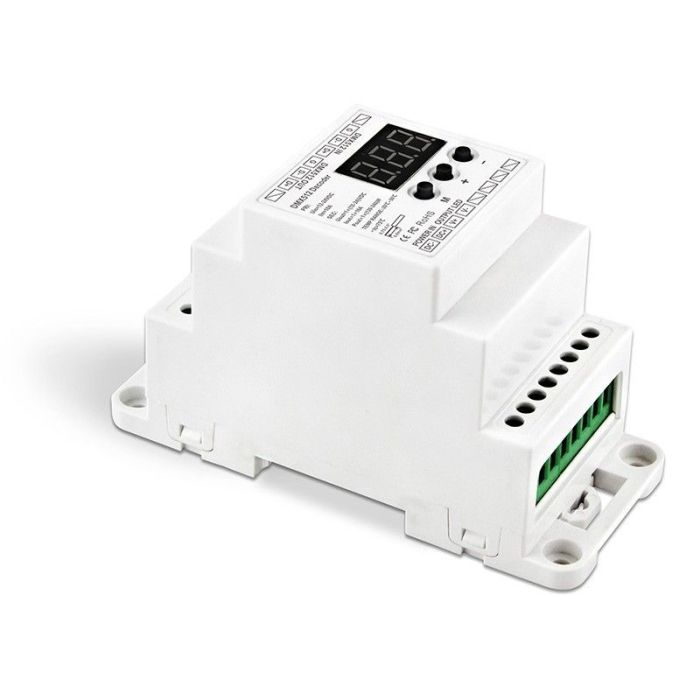

Bincolor Led Controller BC-831-DIN DIN Rail DMX512 Decoder Digital Tube Display

Be the first to review this product

$25.36

In stock

SKU

Bincolor Led Controller BC-831-DIN DIN Rail DMX512 Decoder

Bincolor Led Controller BC-831-DIN DIN Rail DMX512 Decoder Digital Tube Display is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Constant Voltage DMX512 Deloped coder which is deveonly for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.

One channel output, max 10A output each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder

to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.

Specifications:

Model: 1CH Constant Voltage decoder

Input voltage: DC12V-DC24V

Max load current: 1CH×10A

Max Output Power: 120W(12V)/240W(24V)

Grey Scale: 4096 levels×1

Input Signal: DMX512/1990

Output Signal: Constant Voltage PWM

Decode Channel: 1CH

DMX512 socket : Terminal Block

Dimension: L111×W46×H66(mm)

Weight (G.W) : 135g

Feature function:

Automatically adapts input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address code.

1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.

DMX Master mode, slave mode available.

Built-in 8 color changing modes and 10 speed scales.

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Wrong wiring protection at DMX port, over current protection and short circuit protection.

The DIN rail style design facilitates the installation of large-scale projects.

Package Content:

1 Piece of Bincolor Led Controller BC-831-DIN DIN Rail DMX512 Decoder Digital Tube Display

1 Piece of User's manual

CE and RoHS approved
