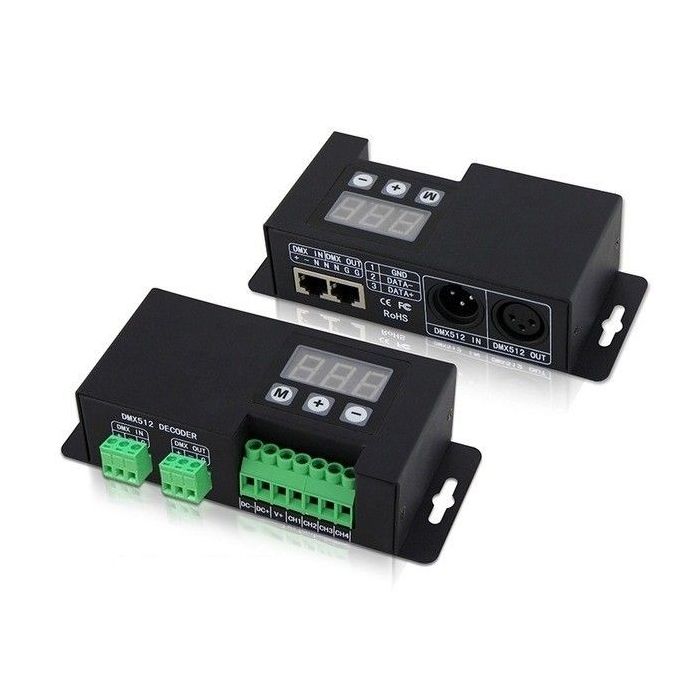

Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder 3-digital-display Signal Driver
$38.76
In stock
SKU
Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder
Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder 3-digital-display Signal Driver is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Basic Features:
Automatically adapts input voltage DC12V-48V(CC)
Input standard DMX512 signal; 3-digital-display shows DMX address.
4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
Support master mode or slave mode;
8 color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
Multiple DMX512 signal interface.
Specifications:
Product Model:BC-854-CC
Input voltage:DC12V-DC48V
Max load current:350mA/load X4 or 700mA/load X4
Max output power:1-12pcs 1W LED or 1-12pcs 3W LED
Grey Scale:4096 levels×4
Input Signal:DMX512/1990
Output Signal:Constant Current PWM×4
Decode Channel:4 CH
DMX512 socket:XLR-3R port/ RJ45 port/ terminal block
Dimension:L157×W65×H40(mm)
Weight (G.W):450g
Package Content:
1 Piece of Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder 3-digital-display Signal Driver
1 Piece of User's manual
CE and RoHS approved
