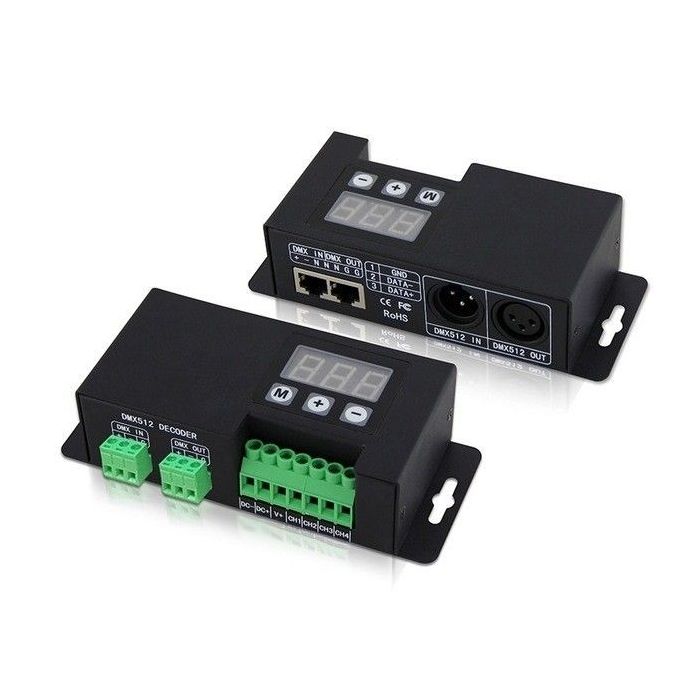

Bincolor Led Controller BC-854 CV 4CH DMX512 Decoder 3-digital-display DMX Signal Driver
$38.76
In stock
SKU
Bincolor Led Controller BC-854 CV 4CH DMX512 Decoder
Bincolor Led Controller BC-854 CV 4CH DMX512 Decoder 3-digital-display DMX Signal Driver is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Basic Features:
Automatically adapts input voltage DC12V-24V(CV)
Input standard DMX512 signal; 3-digital-display shows DMX address.
4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
Support master mode or slave mode;
8 color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
Multiple DMX512 signal interface.
Specifications:
BC-854
Product Model:4CH DMX512Decoder
Input voltage:DC12V-DC24V
Max load current:RGB:4A×3CH W:12A×1CH
Max output power:RGB:48W×3CH W:144W(12V)/RGB:96W×3CH W:288W(24V)
Grey Scale:4096 levels×4
Input Signal:DMX512/1990
Output Signal:Constant Voltage PWM×4
Decode Channel:4CH
DMX512 socket:XLR-3R port/ RJ45 port/terminal block
Dimension :L157×W65×H40(mm)
Weight (G.W):450g
Package Content:
1 Piece of Bincolor Led Controller BC-854 CV 4CH DMX512 Decoder 3-digital-display DMX Signal Driver
1 Piece of User's manual
CE and RoHS approved
