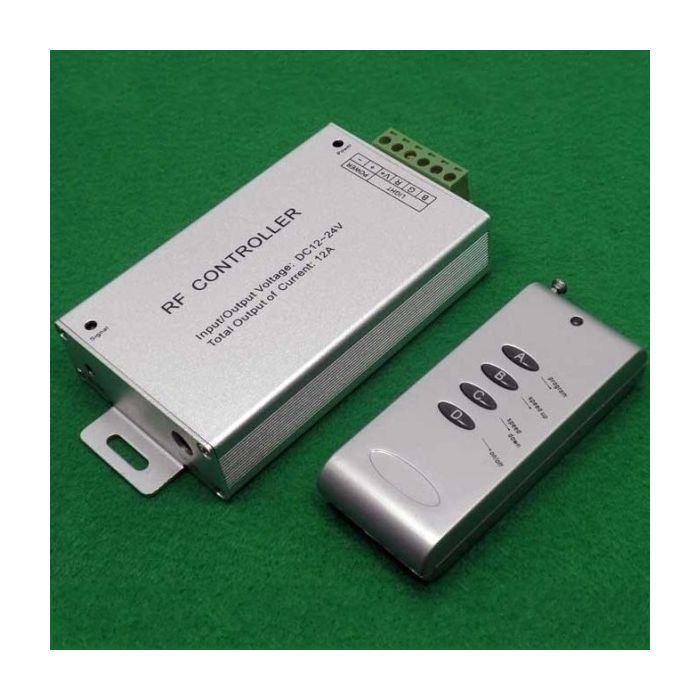

RF 4 keys LED controller adopts the advanced micro control unit, it used for controlling a variety of lamp whose source of light is LED.
For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,
it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers,
RF 4key LED controller can carry out jumpy changing, gradual changing, strobe flash and other effects of change.
Parameter
Working temperature: -20oC~60oC
Supply voltage: DC 12~24V
Output: 3 channels
Connecting mode: common anode
Transmission/Receiving frequency: 433.92 MHz
External dimension: L128*W64*H24mm
Packing size: L145*W95*H50mm
Net weight: 185g
Gross weight: 215g
Static power consumption<1 W
Output current: <4 A (each channel)
Output power: 12V<144W, 24V<288W
Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt RF control, there are four buttons altogether, and every key-press function is as follows:
Program: pattern key, lighting color will change if you press one time;
Speed up: to speed up lighting color changing;
Speed down: to speed up lighting color changing;
On/Off: Power switch, you could turn on/off controller in any state.
3. Standard color changes as follows:
Items Patterns Remarks
1 Static red
2 Static blue
3 Static yellow
4 Static green
5 Static purple
6 Static cyan
7 Static white
8 Three-color jumpy changing 2(B) and 3(C) keysare available
9 Seven-color jumpy changing 2(B) and 3(C) keysare available
10 Three-color gradual changing 2(B) and 3(C) keysare available
11 Seven-color gradual changing
Package Included:
1 Piece of Common Anode 4 Keys Wireless Remote LED Controller DC 12V 24V
CE and RoHS approved
