DC 5V 12mm 1903 LED Pixel Module IP68 Waterproof Exposed Point Light
$13.65
In stock
SKU
DC 5V 12mm 1903 LED Pixel Module IP68 Waterproof Exposed Point
DC 5V 12mm 1903 LED Pixel Module IP68 Waterproof Exposed Point Light is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
High Quality of DC 5V 12mm 1903 LED Pixel Module IP68 Waterproof Exposed Point Light:
IC type: UCS1903
IC quantity: 50 pieces
Gray scale: 256 levels
LED type: 8mm full RGB strawhat LED, brand Epistar LED, excellent performance
Dimension: 12x14mm
RGB LED quantity: 50 pieces
Protection rate: IP68 Waterproof You would use the LED module during the rain for long time, pls choose lights.
Viewing angle: 120 degrees
Working voltage: DC 5V
Working current: 60 mA
Working consumption: 0.3 watt
Working temperature: 40~60 Celsius
Working consumption: 0.3W/LED 12W/Sting, (One String has 50pcs LEDs.)
Package Included:
1 String of 12mm UCS1903 LED Module DC 5V IP68 Waterproof RGB LED Pixel Light(1 String has 50pcs LEDs.)

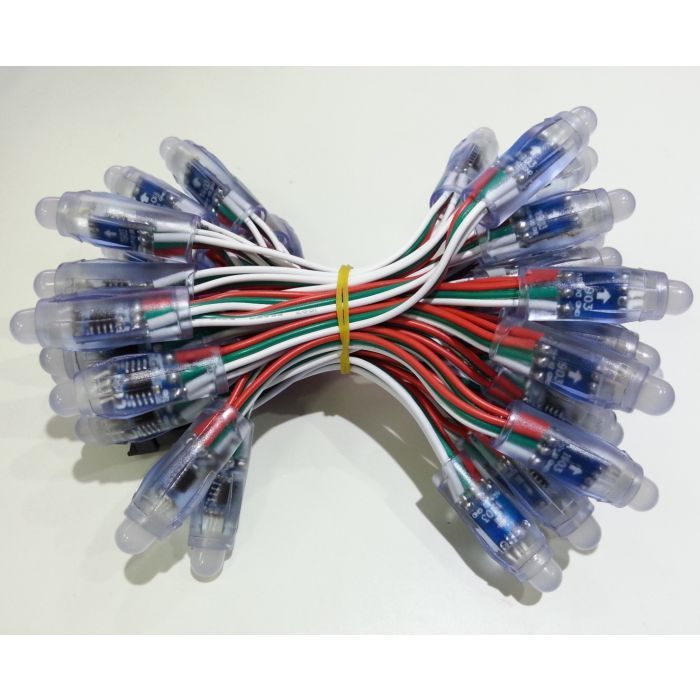

Here are the photos:
The is the photo of using our C1000 SD Card Controller for UCS 1903 LED Module DC 5V Waterproof RGB LED Pixel Module, you would design
the lettering message or the patterns via this controller. Here is our product link for this C1000 SD-card Controller Max 2048 Pixels (This
C1000 SD card controller would drive up to 2048 pixels.)
You just need to connect the led pixel module and power the led pixel at DC 5V like following photo:
CE and RoHS approved
