DC 5V APA102 Digital Intelligent 144LEDs 1M LED Strip Light is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

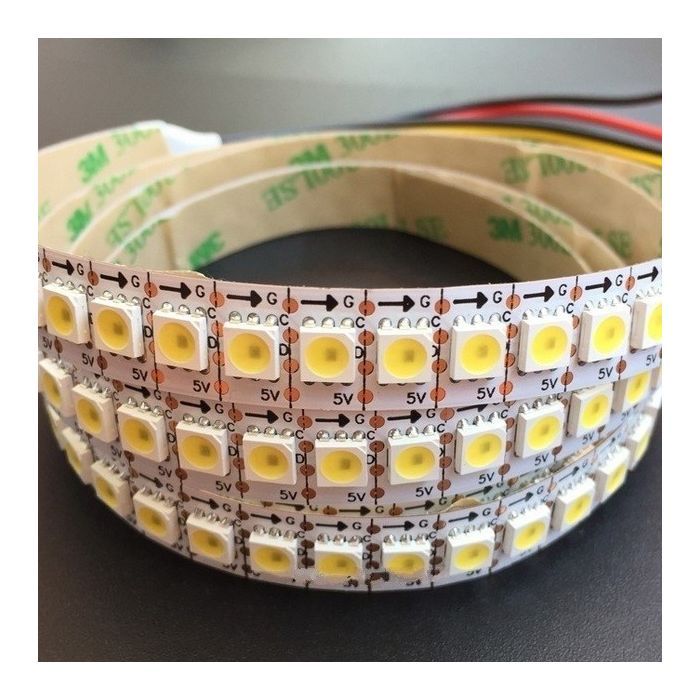

DC 5V APA102 Digital Intelligent 144LEDs 1M LED Strip Light
Unlike WS2812B LED strip, The APA102 led strip has 2 wires for sending data - one clock pin and one data pin. That means you need two pins, not one, to control strip. Because the clock and data is seperated, you can use any processor speed or type to control these strips. You can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip. It's very easy to port the library, and you can send data to the pixels at up to 32MHz clock rate!
Every LED section can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need 5V power supply.
IC Model: APA-102C
Input voltage: DC5V
Max current draw : 60mA per LED
Light source: Epistar 5050 SMD LEDs
Light Color: Pls Choose, Warm White 2800-3500K or Pure White 5500-6500K
LED Qty: 144 LEDs/M
FPC width: 12mm
Beam angle: ~120°
Protection Rate: Pls Choose,
Non-Waterproof with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Length: 1 meter a roll
Package Include:
1 Roll of DC 5V APA102 Digital Intelligent 144LEDs 1M LED Strip Light
