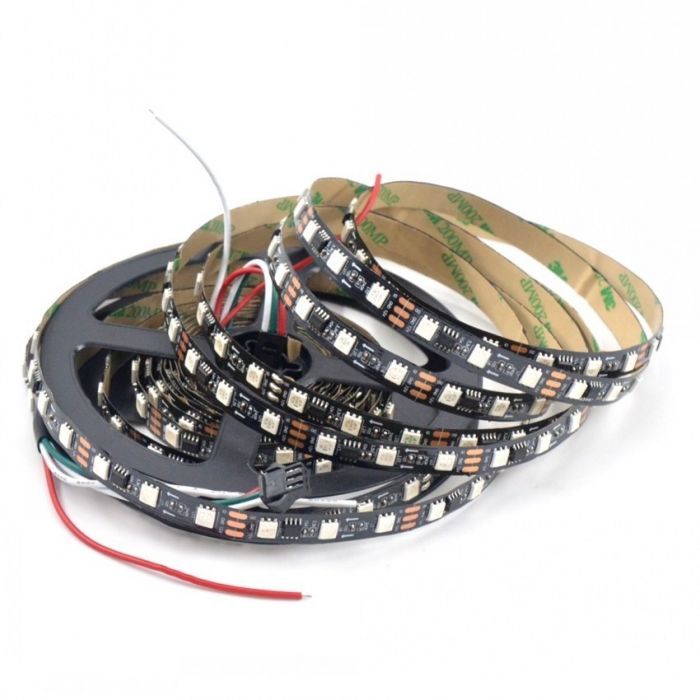

Digital Pixel RGB LED Strip 12V WS2811 Addressable 5050 60LED/M 5 Meters 16.4ft
The 5m 12V DC SPI 60LED/m RGBIC Digital LED Strip and Cut at every 5cm is a LED strip called Digital because we can
control the colour of the LEDS independently. Thanks to the Digital SPI control the strip is able to perform tracking effects,
flash, light groups of LEDs independently, so it provides a more complete range of effects and colours than conventional RGB strips.
Features of the 5m 12V DC SPI 60LED/m RGBIC Digital LED Strip and Cut at every 5cm.
The 5m 12V DC SPI 60LED/m RGBIC Digital LED Strip and Cut at every 10cm is 5 metres long and uses high brightness SMD5050
technology LEDs and a WS2811 control chip.
SPI Digital LED Strips are strips that have IC integrated circuits that allow them to control the colour and intensity of each group of LEDs
separately via the SPI interface (Serial Peripheral Interface). With this particular strip it is possible to control groups of 3 LEDs independently.
To get the most out of the RGBIC Digital SPI 12V DC 60LED/m 5m we need a suitable digital controller. In the accessories section you can find a digital
SPI controller with more than 120 colour presets so you don't have to do any programming. Just connect the power supply and enjoy more than 120 different colour modes.
The digital strip can be configured in two different pin orders RGB and BGR. Our digital strip is configured with BGR and all digital controllers follow the BGR order.
It is important that the driver used is compatible with the pin order of the strip to avoid the colours being displayed incorrectly.
Advantages of the 5m 12V DC SPI 60LED/m RGBIC WS2811 Digital LED Strip and Cut at every 5cm
Thanks to its extra flat design, this type of LED lighting achieves an ideal lighting effect for all types of projects.
The versatility of the SPI 12V DC 60LED/m 5m Digital RGB LED Strip allows for a variety of applications such as accent lighting,
decorative lighting or wayfinding. This type of strips are very useful in festive spaces such as concert halls, discotheques, facades, pergolas,
corridors, showcases, shelves, etc.
We supply high quality 5 Meters DC12V WS2811 RGB LED Strip 20pcs ICs and 60pcs RGB LEDs Each Meter to meet
your lighting project needs.
Each Meter has 60pcs 5050 RGB LED With 10paths driver IC inside to drive 20 pixels,Connecting with the controller
can get more than 133 programs which are various color style changing and patterning.
Working voltage: DC12V
Current: about 6A/5Meters, 1.2A/Meter
LED Quantity: 60 leds Per Meter
IC Chip: WS2811 256 gray scalse
IC Quantity: 20pcs WS2811 IC per Meter
PCB Background Color: Pls choose
Wave length(NM):R-650mcd, G-520mcd,B-460mcd
Power(W/M): approx 14.4W/M
Signal: WS2811 chip
View angle:120 degree
Life span:no less than 50000hrs
Dimension:Around 1000*12*2.2mm The strip's original width is 10MM, With the cilicon tube, the width in total will be 12MM
Packaging:5Meters/reel in antistatic bag
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Package Included:
1 Roll of Digital Pixel RGB LED Strip 12V WS2811 Addressable 5050 60LED/M 5 Meters 16.4ft
CE and RoHS approved
