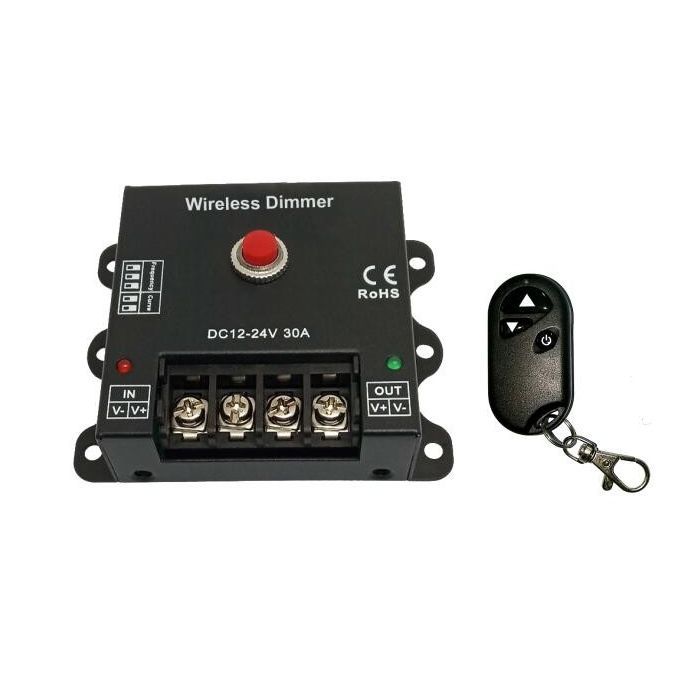

DM111 Frequency Adjustable Wireless Dimmer Leynew LED Controller

$11.43
In stock
SKU
DM111 Frequency Adjustable Wireless Dimmer Leynew LED Controller

DM111 Frequency Adjustable Wireless Dimmer Leynew LED Controller is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Summarization

Frequency adjustable wireless dimmer can achieve ten-level dimming, can dim with button and wireless remote control.

User can adjust light to the appropriate brightness according to actual needs. Output of dimmer is 1 channel, and you can

adjust PWM frequency and dimming curve through the dial switch.

Technical Parameters

Working temperature: -20-60℃

Supply voltage: DC12-24V

Output: 1 channel

Connection mode: common anode

External dimension: L81.5ΧW64ΧH40 mm

Packing size: L90ΧW72ΧH50 mm

Net weight: 140g

Gross weight: 195g

Static power consumption:<1W

Output current: <30A

(when PWM frequency is more than 1KHZ, maximum output current will reduce accordingly)

Power supply for remote control: 12V

Transmission frequency: 433.92 Mhz

Remote control distance: about 20m

Emission current: 30mA

Package Content:

1 Piece of LED Controller

1 Piece of User's manual

DMX_Controller_Series_DM111_1

DMX_Controller_Series_DM111_2

DMX_Controller_Series_DM111_3

DMX_Controller_Series_DM111_4

DMX_Controller_Series_DM111_5

DMX_Controller_Series_DM111_6

DMX_Controller_Series_DM111_7

CE and RoHS approved
