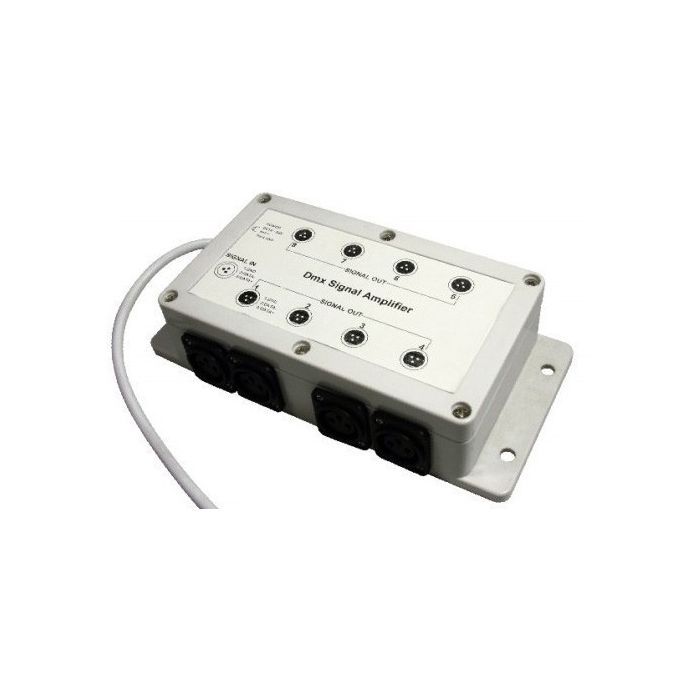

DMX Splitter 1 In : 8 Out LED DMX Signal Amplifier is great for large projects where it is not practical to daisy
chain (connect all devices in series) all your DMX devices
This will allow to do a Star Configuration (each device or chain of devices can home run back to this splitter)
Note: you will still want to use DMX Terminators on the end of each run for best performance
Suggested Uses
Connecting multiple DMX runs to one controller.
Places where it is easier to run several home runs to the splitter then it is to connect all the devices together in series.
Led Color
N/A
Mounting Options
Ceiling Mount, Wall Mount
Voltage
DC12V to 24V
Wattage
n/a
Connections Input/Output
12-24 V DC Input
1x DMX - IN (3-Pin XLR)
8x DMX - OUT (3-Pin XLR)
Power Input: Connection Type, Voltage, Amperage
Barrel Plug 12-24v
Output Connection Type
8x 3-Pin XLR
Weight / Item
.90 lb
Product Size (L)x(W)x(H)
(L) 8" x (W) 4" x (H) 2" in (without cords plugged in)
Comes With
Includes Short Female Power Connector
Suggested Accessories
12v or 24v Power Supply
Package Included:
1 Piece of DMX Splitter 1 In : 8 Out LED DMX Signal Amplifier Booster
Direction for use:
According to the panel of DMX amplifier, to connect input and output signal wires in order to ensure short
circuit can not occur between wires, and then connect power for DMX amplifier ,and RGB amplifier goes hand
in hand with DMX controller, please refer to the following < Typical applications>.
CE and RoHS approved
