This controller is very cool and easy to use. It would be a controller which means you would Running the internal 45 types of patterns,
then it would can control up to 170 pixels; also it would be a dmx decoder for WS2801 WS2811 WS2812B LPD6803 TM1809 TM1812
addressable RGB led lights,can control up to 2048 pixels.
Features:
Working Voltage: DC 5~40V
Power Consumption: less than 1W
Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
Support kinds of DMX512 controllers, support up to 3072 DMX512 channels;
Recognize DMX512 signal automatically;
With 45 kinds of patterns,which are vivid and beautiful;
As a controller running internal patterns can control up to 2048 pixels;
As a dmx decoder, it would only control up to 170 pixels;
Works in single or multiple synchronous modes.
Operating Instructions：
1. Works with external DMX512 signal:
Make sure that wire connections are correct, input the DMX512 signal and the decoder can recognize and decode it.
2. Running the internal patterns:
Switching patterns by pressing MODE single time forwardly;
Switching the running speed by pressing the SPEED button;
Pressing the AUTO button to jump to the patterns automatically.
3. Using toggle switch:(will support more driver IC later)
When switch 1 to ON: To control WS2801;
When switch 2 to ON: To control WS2811; WS2812B; TM1809; TM1812
When switch 3 to ON: To control LPD6803;
Package Include:

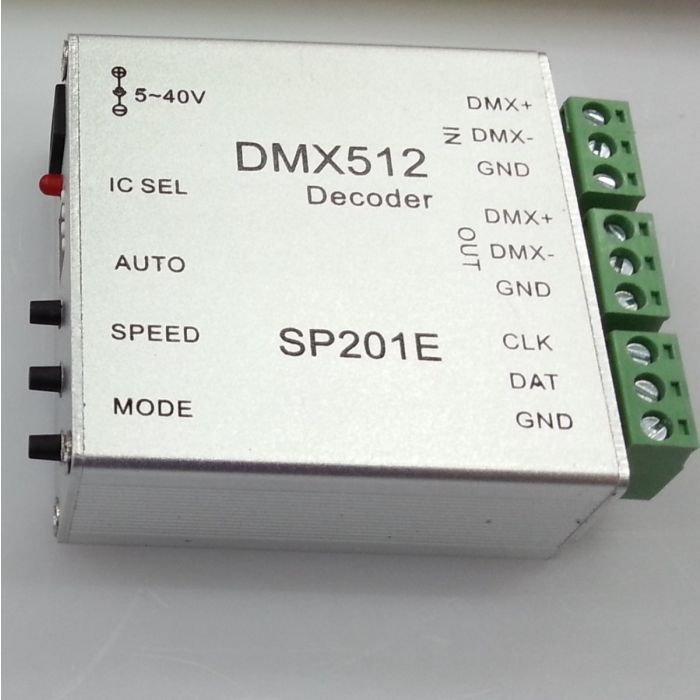

1 Piece of Dmx to ws2801 ws2811 2812B 6803 Dmx512 Converter Decoder
1 Piece of Cable
1 Piece of User's Manual
CE and RoHS approved
