DMX Transmitter Wireless DMX 512 Extender 2.4GHz 32-bit Arm Core

Be the first to review this product

$17.43

In stock

DMX Transmitter Wireless DMX 512 Extender 2.4GHz 32-bit Arm Core is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DMX transmitter can control many DMX receivers, and from now on, become free of those annoying cables!

Specification:

Compatible with DMX512 equiments

Up to 1000 ft. wireless (RF) d

XLR-3 Input Connections

Zero-delay transmission

Technical Parameters:

Input Voltage 5VDC

Connection Type XLR-3 Male

Working Frequency 2.400 - 2.4835GHz, ISM, 126 RF CH

CPU: 32-bit Arm Core

Modulation GFSK

Max Transmit Power 23dBm

Receiver Sensitivity -94dBm

Transmitting Distance 1000 ft. effective open area

Wireless ID’s 7 color-coded ID’s (red, green, yellow,blue, pink, cyan, white)

Power Failure Memory Yes

Power Input Connection 3.5 mm DC female jack

Environment Suitable for indoor/dry installations

Operating Temperature -4° - 122°F (-20° - 50°C)

Ambient Temperature -4° - 104°F (-20° - 40°C)

Transmitter Dimensions (Male) 5.08 x 0.75 in. (L x DIA)

Antenna: 3.70 x 0.36 in. (L x DIA)

Details of Power Adapter:

Adapter Working Voltage 100-240VAC,

Adapter Working Frequency 50/60Hz

Adapter Output Voltage 5VDC, 1A

Adapter Dimensions approx. 0.95 x 1.34 x 2.17 in. (L x W x H)

Adapter DC Plug Size Inside Diameter: 1.35mm

Outside Diameter: 3.5mm

Adapter Lead Length approx. 60 in.

Weight of Transmitter approx. 2.6 oz.

Weight of Adapter approx. - 2.2 oz.

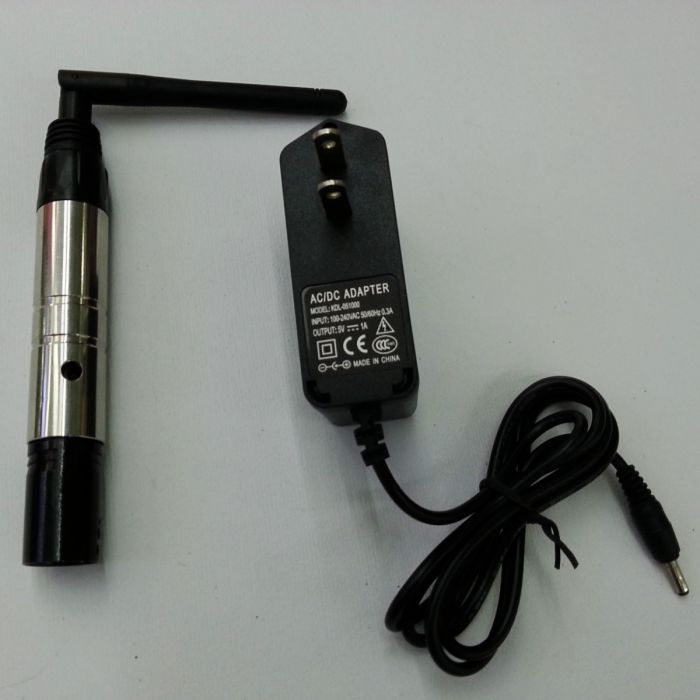

Package included:

1 Piece of DMX Transmitter (male plug)

1 Pieces of Power Adapter (Working Voltage: AC100V to 240V; Output: DC5V 1A)

CE and RoHS approved
