With this high quality DMX Wireless Receiver, you would enjoy a very good dmx system. Because 1 DMX
transmitter can control many DMX receivers, and from now on, become free of those annoying cables!
Specification:
Compatible with DMX512 equiments
Up to 1000 ft. wireless (RF) data transmission
XLR-3 Input Connections
Zero-delay transmission
1 DMX transmitter can control many DMX receivers
Technical Parameters:
Input Voltage 5VDC
Connection Type XLR-3 Female
Working Frequency 2.400 - 2.4835GHz, ISM, 126 RF CH
CPU: 32-bit Arm Core
Modulation GFSK
Max Transmit Power 23dBm
Receiver Sensitivity -94dBm
Transmitting Distance 1000 ft. effective open area
Wireless ID’s 7 color-coded ID’s (red, green, yellow,blue, pink, cyan, white)
Power Failure Memory Yes
Power Input Connection 3.5 mm DC female jack
Environment Suitable for indoor/dry installations
Operating Temperature -4° - 122°F (-20° - 50°C)
Ambient Temperature -4° - 104°F (-20° - 40°C)
Transmitter Dimensions ( Female) 5.08 x 0.75 in. (L x DIA)
Antenna: 3.70 x 0.36 in. (L x DIA)
Details of Power Adapter:
Adapter Working Voltage 100-240VAC,
Adapter Working Frequency 50/60Hz
Adapter Output Voltage 5VDC, 1A
Adapter Dimensions approx. 0.95 x 1.34 x 2.17 in. (L x W x H)
Adapter DC Plug Size Inside Diameter: 1.35mm
Outside Diameter: 3.5mm
Adapter Lead Length approx. 60 in.
Weight of Transmitter approx. 2.6 oz.
Weight of Adapter approx. - 2.2 oz.

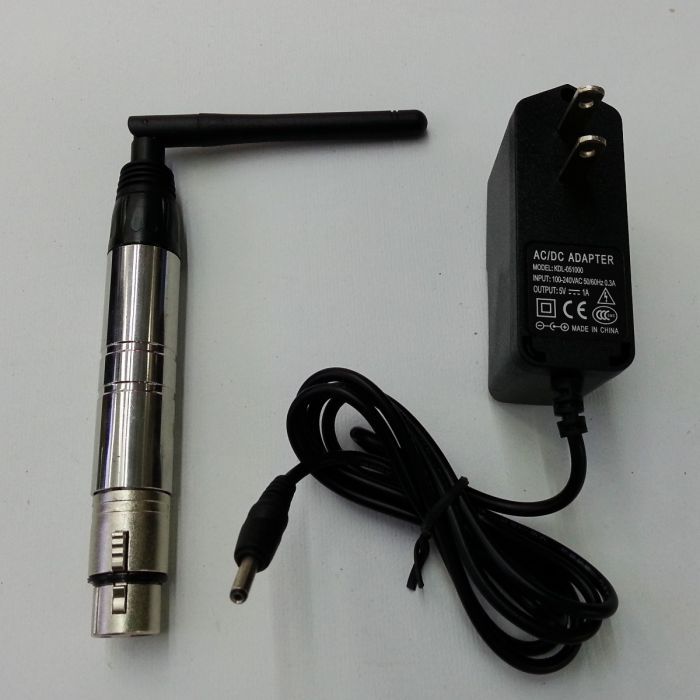

Package included:
1 Piece of DMX Receiver (female plug)
1 Pieces of Power Adapter (Working Voltage: AC100V to 240V; Output: DC 5V 1A)
CE and RoHS approved
