Specifications:
Size:18 Channel
Input/Output Voltage: DC12V-24V
Total Output of current: 18A
Output: 1A each channel max 3A
Channel: 18channel 6 group
Controller: DMX512 XRL 3P RJ45
Working temperature: -20~60 celsius
Dimension:140x84x25mm
Weight:0.2Kg
Function:
Each DMX common controller occupied 3 DMX addresses,adopt coding switch set address.It is a Binary numerical
code switch is setting DMX original address code from 1 to 9. 1 is the lowest,and 9 is the highest.511 address codes
could be setted in wall.DMX original address code equal aggregate value from 1 to 0. Dial the coding swich upwards
(ON is setted 1),the value of bit can be gotted.On the contrary,the value of bit is 0. For example:if you want to set 37
as the address code,you can only dial down the first,the third and the sixth code switch value from 1 to 9 is 32+4+1,
that is,the original address code of DMX512 is 37.
DMX signal can be received when coding switch FUN(10)=OFF.
Safety information:
The input voltage of this controller should be follow. The specifications,other high voltage would most probably destroy it.
Never connect two wires directly in case of short circuit.
Lead wire should be connected correctly according to colors that connecting diagram.
Package Included:

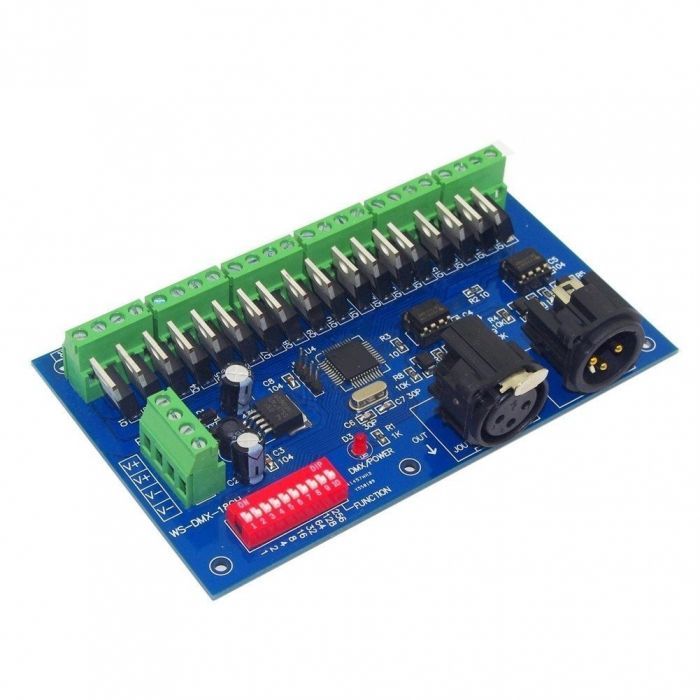

1 Piece of DMX512 18CH Controller Decoder with RJ45 DC 12V 24V
CE and RoHS approved
