DMX512 Controller Relay Switch DIY Converter DMX Decoder Max 10A DMX-RELAY-16CH

Be the first to review this product
$54.21
In stock
SKU
DMX512 Controller Relay Switch DIY Converter DMX Decoder Max 10A
Add to Compare

DMX512 Controller Relay Switch DIY Converter DMX Decoder Max 10A DMX-RELAY-16CH is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

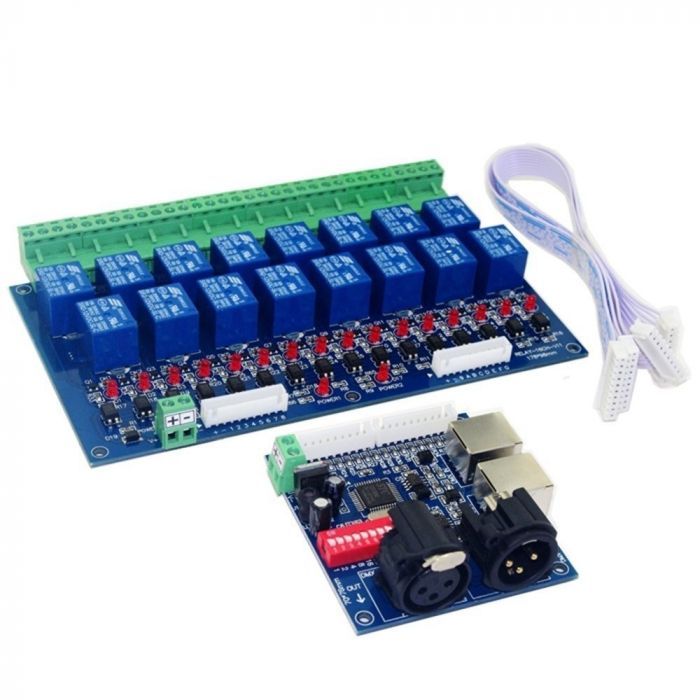

main product photo

16 Channels DMX Relay Switch, Comply with DMX512 international standard protocol

Built in change mode, you can adjust by dialing code

DMX512 address code can be set via DIP

16 relay outputs,10A per channel

Package included: 1pc 16CH Relay switch

Product description

Specifications

Main-board

Supply voltage: DC12V

Size: L76*W70*H32 mm

Output: 16CH TTL Signal

Controller: XLR + RJ45

Weight: 150g

mx512 Data: 0-127 Relay Switch OFF, 128-255 Relay Switch ON

Relay-16CH

Supply voltage: DC 12V

Size: L178*W98*H25mm

Output: 16 group relay switch (normally open)

DC5V-48V Max 10A

AC5V-250V Max 10A

Weight: 350g

DIP10 (FUN) is OFF, as DMX512 mode, receive standard DMX512 signal. Occupies three address code,

(R, G, B for each channel), DIP1-DIP9 address code setting.

DIP10 (FUN) is ON, the built-in change mode and does not receive standard DMX512 signal. DIP1-DIP9

to invoke the built-in effects settings.

When less than 127, DMX512 data relay off

DMX512 data is greater than 127 when the relay is closed

Product Model: DMX-RELAY-16CH

Package Included:

1 Piece of DMX512 Controller Relay Switch DIY Converter DMX Decoder Max 10A DMX-RELAY-16CH

CE and RoHS approved
