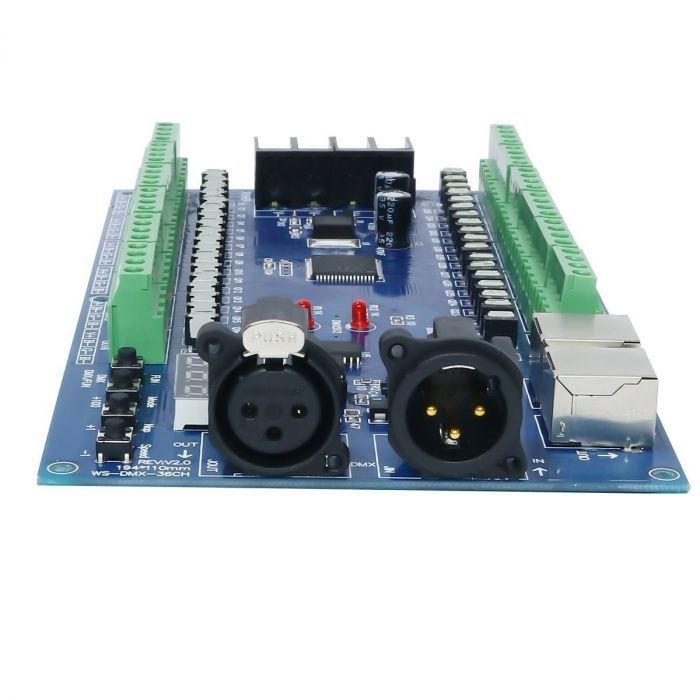

Easy 36 Channel 12 Groups DMX512 Decoder DC 5V-36V WS-DMX-36CH
$52.23
In stock
SKU
Easy 36 Channel 12 Groups DMX512 Decoder DC 5V-36V WS-DMX-36CH
Easy 36 Channel 12 Groups DMX512 Decoder DC 5V-36V WS-DMX-36CH is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Input/Output Voltage: DC5V-36V
Input/Output Voltage: DC5V-36V Total Output of Current: 36A(DC5-24V), 25A(25V-36V)
36 channel 12 group
DMX512 XRL 3P
1A each channel max 3A
Size:36 Channel HV
Specifications:
1.Input/Output Voltage: DC5V-36V
2.Max Output current:1A each channel max 3A
3.Total Output current:36A
4.Channel:36 channel 12 group
5.Controller:DMX512 XRL 3P
6.Working temperature: -20~60 celsius
7.Dimension:194x110x25mm
8.Weight:0.3Kg
Safety information:
1.The input voltage of this controller should be follow. The specifications,other high voltage would most probably destroy it.
2.Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram.
4.Warranty of this product is one year,in this period charge,but exclude the artificial situation of damaged.
Package included:
1x WS-DMX-36CH-HV DMX512 Decoder
Product Model: WS-DMX-36CH
Package Included:
1 Piece of Easy 36 Channel 12 Groups DMX512 Decoder DC5V-36V WS-DMX-36CH
CE and RoHS approved
