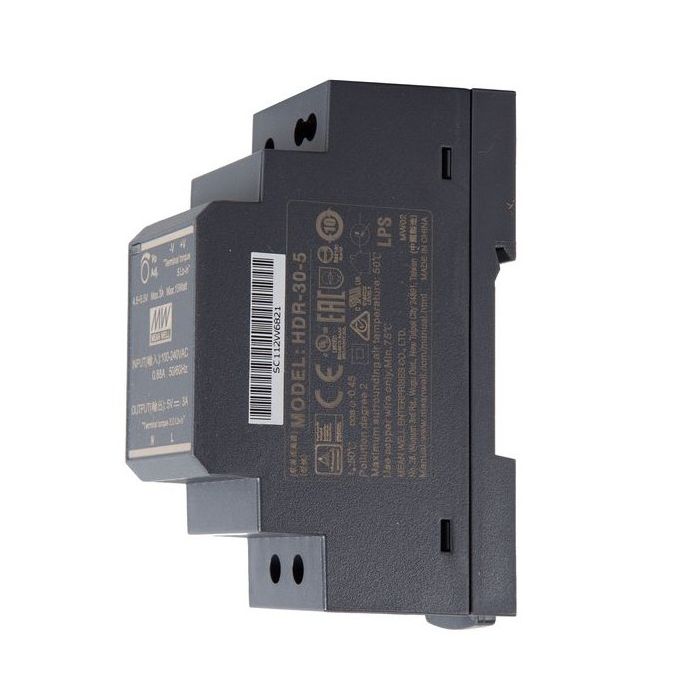

HDR-30-5 Mean Well 5V DC Ultra Slim Step Shape DIN Rail
Manufacturer: Mean Well
Article R.: HDR-30-5
Types: DIN rail assembly single output 1-phase Power: 30W
Description: Even smaller and more powerful than the first generation (DR- Series) on the top
rail power supplies (DIN-Rail) in the plastic housing is the new HDR series from Mean Well.
In the building automation and house control in particular, the power supplies with 30W (HDR-30) are used,
which correspond to protection class II. Mean Well's HDR family has a gradual plastic housing, has an input
voltage range from 85 to 264VAC (also available 277VAC) and offers models with 5V, 12V, 15V, 24V and 48V.
Thanks to the slim design, the height only measures 90mm, the width 2SU (35mm). They can be mounted on the
standardized Hutschienen TS-35/7.5 and TS-35/15. Their properties also include low idle consumption of <0.3W,
a high efficiency of up to 91% and an adjustable DC output voltage and a wide working temperature range (-30 to +70 ° C).
There is also an LED display for the operation. The HDR series from Mean Well fulfills the European standard DIN EN43880,
the regulation of the European Union for Oberwellenstrom according to EN61000-3-2 class A as well as all safety regulations
according to UL60950-1, UL508 and EN61558-2-16.
Special features: adjustable
performance max.: 15 W
Dimensions of the dimensions mm: 54.5 mm
Dimensions
Dimensions of the dimensions mm: 35 mm
:
Protection class: II
Equipment: directly assembled on the DIN rail, closed design, touch-protected screw connections
· Universal entrance · Overload protection by current limitation, auto recovery · Protected against short circuit,
overload, overvoltage · LED-LED- LED- Display for power-on · Isolation class II
Connections: screw terminals
Number of outputs: 1
Number of inputs: 1
execution:
output voltage max.: 5.5 V /DC
output voltage min.: 4.5 V /DC
output current max.: 3 A
output current min.:
Operating voltage:
Input voltage max: 264 V /AC
Input voltage Min: 85 V /AC
Package Included:
1 Piece of HDR-30-5 Mean Well 5V DC Ultra Slim Step Shape DIN Rail
2 Years Warranty
CE and RoHS approved
