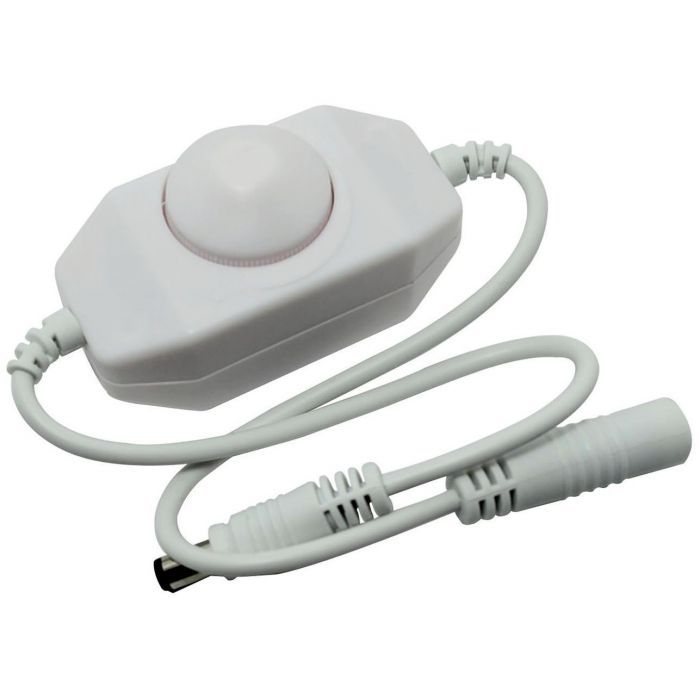

This PWM Inline Dimmer is a controller that it can adjust brightness, its control mode is knob-operated control,
you could adjust light to the appropriate lighting brightness in accordance with your actual need. Apply to commercial
and household usage, can be used to control varies constant voltage LED lightings, such as LED Strip, LED Panel Light,
LED spotlight, LED Down light etc.
This is a great dimmer for under cabinet LED lights. Simply use double stick tape to mount under the cabinets.
0-100% Dimming of single color flexible LED strip.
Input: Male 5.5mm X 2.1 Barrel Style Plug for connecting to our power supplies.
Output: Female 5.5mm X 2.1 Barrel Style Plug for connecting to our flexible LED strips with a male power connector.
Requires 12V input.
This Dimmer can dim up to 16' of Single Color Flex Strip (based on 30/m strip)
Working temperature: -20~60 celsuis
Supply voltage: DC12V to DC 24V
Output: 1 channel
External dimension: L61*W33*H32 mm
Packing size: L105*W65*H40 mm
Net weight: 30g
Gross weight: 55g
Static power consumption: <1W
Output current: <2A
Power output: 24W for DC12V; 48W for DC24V
Package Included:
2 Pieces of LED Light Dimmer
2 Pieces of User's Manual
When installing, try to avoid minefields, strong magnetic fields and high-pressure region
Ensure a solid connection to avoid short circuiting to the components that could trigger fires
Install in a well-ventilated place to ensure appropriate environmental temperature
Please check the local voltage, power adapter is in line with product requirements, whether the definition of
positive and negative power supply and product line
To prohibit the live wiring, check the wiring and short-circuit protection
Direction for use
1. Connect the load wire at first, following by the power wire;
2. Adopt rotary button,its function as follows:
Rotate button to the right,brightness will be brighter,when you rotate it to the far right,the brightness is greatest.
Rotate button to the left,brightness will be darker,when you rotate it to the far left,the light will be turned off.
CE and RoHS approved
