IR12BMDIMMER Leynew Led Controller 12-key Control Decoder Infrared Dimmer

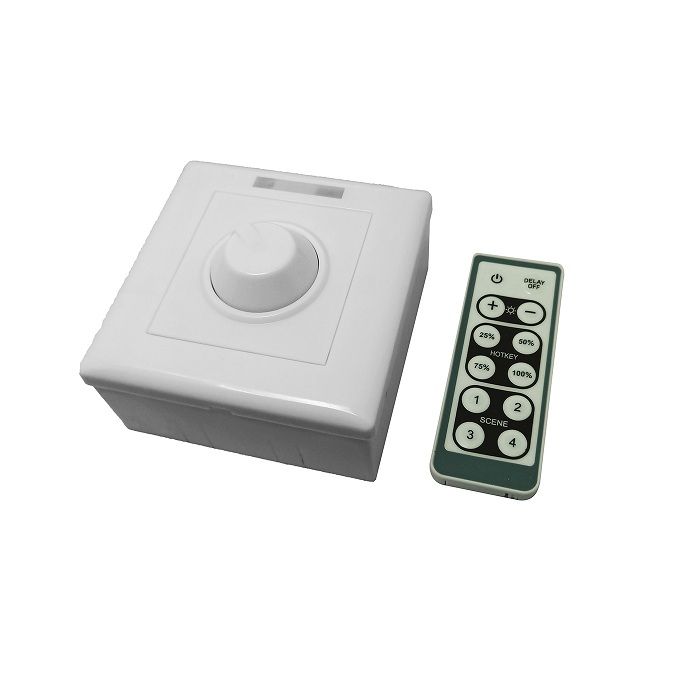

12-key Infrared Dimmer IR12BMDIMMER

12-key Infrared Dimmer Is a dedicated intelligent LED lighting dimmer controls, Adopt the most

advanced PWM (Pulse Width Modulation) digital dimming technology, You can manually adjust the

brightness stepless. IR wireless remote control can also be used to remote dimming; Standards for

commercial or home a low 86-type switch socket box installation, LED Dimmer switches can be installed

to meet the light needs of commercial or home lighting in the different time and different environments,

To extend the LED life span, energy saving; power and low-power LED lighting can be dimmin. Is used to

control a variety of led lamps as the light source, For instance, point source of light, flexible light strip,

wall washer lamp, glass curtain wall light and so on; With competitive price, easy wiring, simple to use etc.;

Through the infrared remote control and dimmers on the knob to adjust brightness; Gray level 255;

with custom features, delay shutdown function and a fixed grayscale output.

Technical parameters

Working temperature: -20-60 ℃

Supply voltage: 5V, 12V~24V <optional> (for orders specify voltage)

Output: 1 channels

Controller dimension: L87×W87×H42mm

Remote dimension: L86×W33×H7mm

Packing size: L160ΧW95ΧH51mm

Net weight: 145g

Gross weight: 180g

Static power consumption: <1 W

Output current: <8 A

Output power: 5 V: <40W, 12V: <96W, 24V: <192W

Package Included:

1 Piece of IR12BMDIMMER Leynew Led Controller 12-key Control Decoder Infrared Dimmer



CE and RoHS approved
