Specification of iTouch 12V-24V DC Touch Control LED Dimmer:
Input voltage: 12V-24V DC Max load current: 3 Amps
Output channel： 1 channel Static power consumption: < 1 watt
Output power: 36W@12V, 72W@24V Neight weight: 23g
Product size: (L)30.8X(W)8.7X(H)38mm
Technical information
1) ON/OFF function:
Touch the switch and then release
2) Dimmer Function:
Touch the switch and hold. Brightness will be either Min-to-Max or Max-to-Min
Main Description

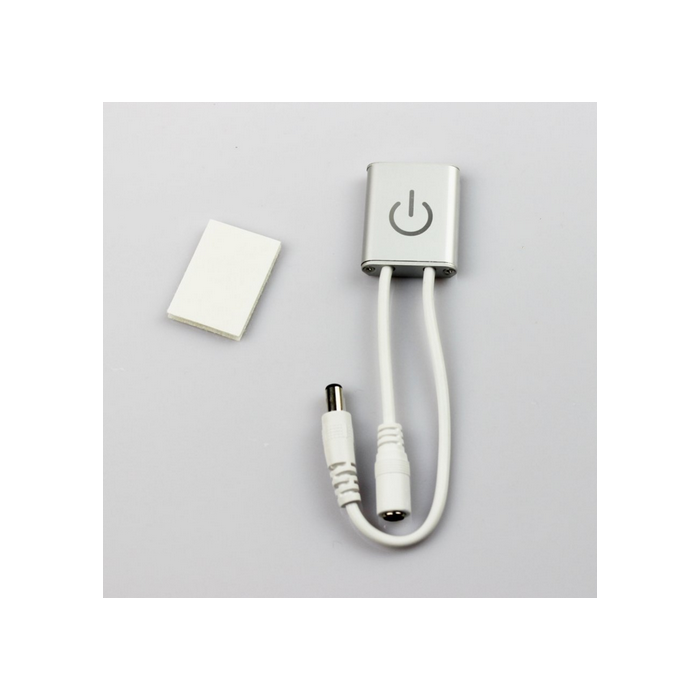

Use it either as an On / Off switch, or adjust the brightness of your LEDs with this simple in- line
LED touching dimmer. It only takes a light
tap to turn it on, and another light tap to turn it off. While hold your finger to it to smoothly cycle
through the brightness levels from 10 to
100% percent using Pulse Width Modulation (PWM) circuit.
After got the perfect brightness to suit your mood, just remove your finger, and your LEDs will stay
glowing at that brightness level. It has
Memory Function! So even if you remove power,this smart dimmer will remember the last bright-ness level.
When you turn it back on, it
will go straight to the last brightness level.
When power is removed, the LED will obviously turn off. When power re-applied, you must tap the Touch LED
Dimmer once to turn the LED
back on.With Male and Female 5.5mm barrel power connector for connecting in-line with our Power Supplies.
Kindly reminder
Whether for a test or application, in order to have the best product performance, please do not hold its Touch Panel.
3M adhesive tape on
the back, for your ease installation. For indoor use only–this product is not waterproof or weatherproof.
1. ON/OFF, dimming by touch the sensor place on the dimmer
2. Touch the sensor place less than 5 second, it is on/off swithc function
3. Touch more than 5 second, into dimming function, the brightness will be raise to highest or down to lowest
