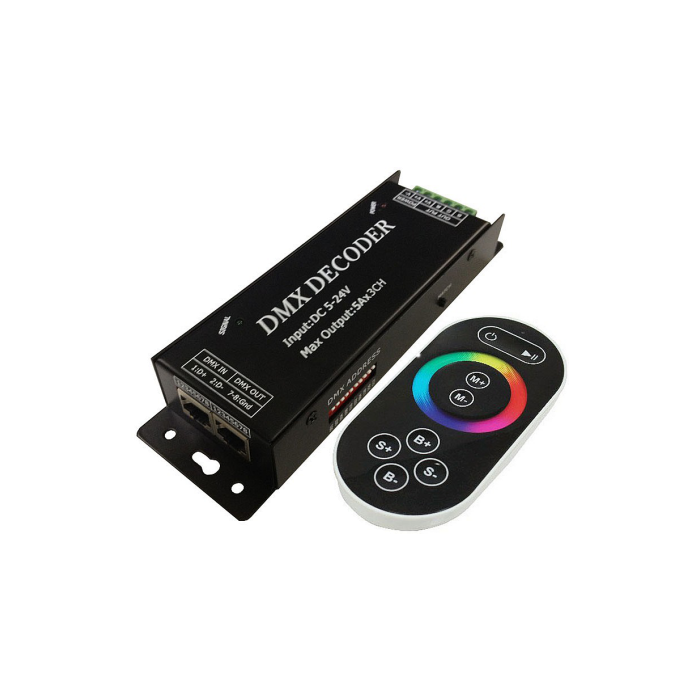

Leynew LED ControllerStrip DMX Decoder DMX101 LED Control
$17.05
In stock
SKU
Leynew LED ControllerStrip DMX Decoder DMX101 LED Control
Leynew LED ControllerStrip DMX Decoder DMX101 LED Control is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal
that is widely used in the and transform it into PWM signal to drive LED; the port of DMX signal has lightning
protection measures, while the load output has over-current protection circuit; You could connect the DMX
decoder with DMX digital console to achieve dimming or various changes in procedures. Not connected with
DMX console, you can choose select the built-in 11 kinds of default patterns through the wireless remote control.
Technical Parameters
Decoder
Working temperature: -20-60 ℃
Input voltage: DC5-24V
Output: 3 channel
Connection mode: common anode
External dimension: L175 * W53 * H27（mm）
Packing size: L180 * W58 * H58（mm）
Net weight: 300g
Gross weight: 350g
Output current: <5A (each channel)
Output power: 5V:<75W, 12V:<180W, 24V:<360W
Touch remote
Working temperature: -20-60℃
Power supply mode: AAA*3 battery
Supply voltage: 1.5V*3
Standby power consumption: 0.015mW
Standby current: 3uA
Emission current: 10mA
Remote distance: 15m
Standby time: 6 months
CE and RoHS approved
