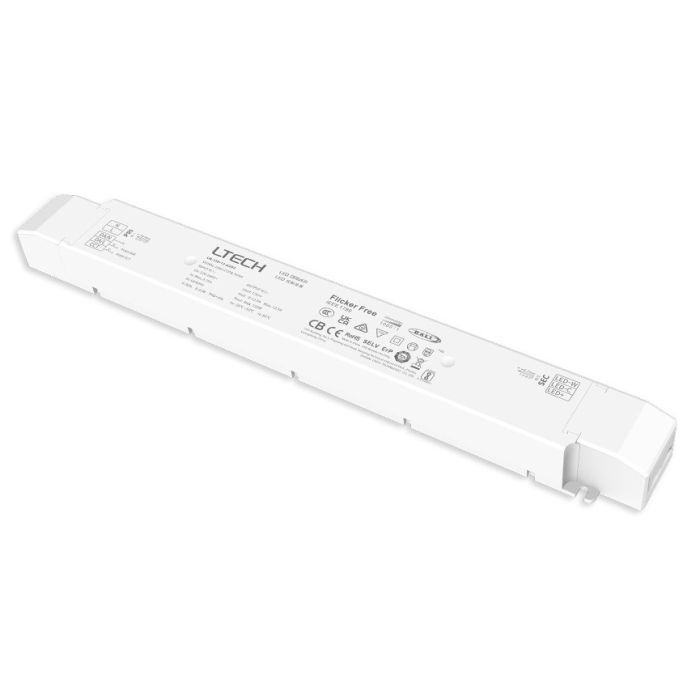

LM-150-12-G2D2 Ltech CV DT8 DIM CT DALI Controller LED Driver

$48.21
In stock
SKU
LM-150-12-G2D2 Ltech DALI Controller LED Driver
  • Buy 50 for $45.32 each and save 6%

For more LTECH DALI Controller Driver, pls check here: https://www.vipfactoryprice.com/ltech-controller/ltech-dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.vipfactoryprice.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vipfactoryprice.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vipfactoryprice.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here:  https://www.vipfactoryprice.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vipfactoryprice.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on vipfactoryprice.com

LM-150-12-G2D2 Ltech CV DT8 DIM&CT DALI Controller LED Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Small size and light weight. The housing is made from V0 flame retardant PC materials that SAMSUNG/COVESTRO uses.

The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the

length of housing depending on your needs.

2 independently SELV constant voltage output channels.

DALI-2 DT6/DT8, DIM and color temperature adjusting driver.

Constant power design, adjust different color temperature to keep the same brightness.

Dimming range from 0-100%, LED start at 0.1% possible.

Color temperature adjusting range: 2700-6500K.

High Efficicient driver: efficiency 93%, PF>0.98, THD<6%.

In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W.

Innovative thermal management technology, intelligent power life protection.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Fully-protected plastic housing with design of dismountable end cover.

Suitable for internal lights application forI/II/III.

Up to 50,000-hour life time.

5 years warranty (Rubycon capacitor).

Rubycon capacitor

Dimming Interface: DALI DT8(IEC62386), Push DIM/CCT

Input Voltage: 220-240Vac 200-280Vdc

Power Factor: PF>0.98/230Vac, at full load

Efficiency: 92%

Fluctuation Level: High frequency exemption level.

Output Voltage: 12Vdc

Output Current: Max. 12.5A

Output Power: 0~150W

Dimming Range: 0~100%, dimming depth: Max. 0.1%

Certification: CCC,EAC,KC,TUV,RCM,CB,CE,ROHS,BIS,ERP,UKCA

Warranty: 5 years

Package Included:

1 Piece of LM-150-12-G2D2 Ltech CV DT8 DIM&CT DALI Controller LED Driver

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
