LM-36-24-G1D2/LM-36-12-G1D2 DALI-2 LED Intelligent Driver Ltech Controller

$23.65
In stock
SKU
LM-36-24-G1D2/LM-36-12-G1D2 DALI-2 LED Intelligent
  • Buy 50 for $22.35 each and save 5%

For more LTECH DALI Controller Driver, pls check here: https://www.vipfactoryprice.com/ltech-controller/ltech-dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.vipfactoryprice.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vipfactoryprice.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vipfactoryprice.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here:  https://www.vipfactoryprice.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vipfactoryprice.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on vipfactoryprice.com

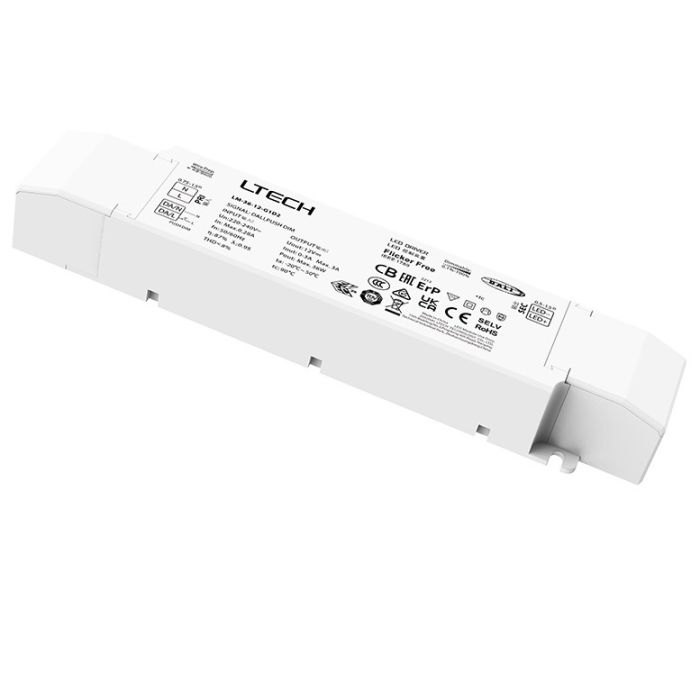

LM-36-24-G1D2/LM-36-12-G1D2 DALI-2 LED Intelligent Driver Ltech Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.

The design of dismountable end cap allows you to adjust the length of housing depending on your needs.

Dimming interfaces: DALI-2, Push DIM.

Dimming range: 0~100%, dimming down to 0.1%

Flicker-free with high frequency exemption level in 0~100% dimming process.

High-performance drivers: Effeciency 88%, PF>0.95, THD<8%.

Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.

The secure and reliable design for signal isolation.

Innovative thermal management technology intelligently protects the lifetime the driver.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

DALI bus standard IEC62386-101,102,207.

Suitable for lamp applications of indoor I/II/III types.

Up to 50000-hour life time.

5 year warranty (Rubycon Capacitor).

LM-36-12-G1D2

Rubycon capacitor

Dimming Interface:    DALI-2, Push DIM

Input Voltage:    200-240Vac / 200-280Vdc

Power Factor:     PF>0.95/230Vac , at full load

Efficiency:    87%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    12Vdc

Output Current:    Max. 3A

Output Power:    0~36W

Dimming Range:    0~100%, dimming down to 0.1%

Certification:    CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA

Warranty:    5 years

LM-36-24-G1D2

Rubycon capacitor

Dimming Interface:    DALI-2, Push DIM

Input Voltage:    200-240Vac / 200-280Vdc

Power Factor:     PF>0.95/230Vac , at full load

Efficiency:    88%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 1.5A

Output Power:    0~36W

Dimming Range:    0~100%, down to 0.1%

Certification:    CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA

Warranty:    5 years

Package Included:

1 Piece of Ltech LED Driver Controller

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
