Ltech Driver LM-75-12-G1A2 LM-75-24-G1A2 LM-100-24-G1A2 Led Dimmer

$31.80
In stock
SKU
Ltech Constant Voltage 0/1-10V LED Dimming Driver
  • Buy 50 for $28.94 each and save 9%

For more LTECH 0/1-10V, pls check here: https://www.vipfactoryprice.com/ltech-controller/letch-0-1-10v.html

If you need COB Led Strip, pls check here: https://www.vipfactoryprice.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vipfactoryprice.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vipfactoryprice.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here:  https://www.vipfactoryprice.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vipfactoryprice.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on vipfactoryprice.com

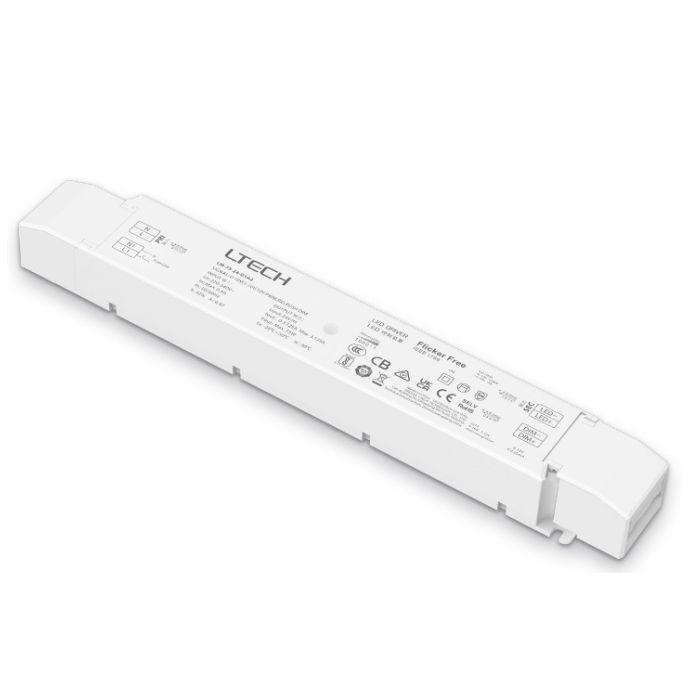

LM-75-12-G1A2 LM-75-24-G1A2 LM-100-24-G1A2 Constant Voltage 0/1-10V LED Dimming Ltech Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM

Built-in SCM, dimming curve and smoothing time of power on can be customized.

Dimming range from 0-100%, LED start at 0.1% possible.

Automatic recognition of 0-10V, 1-10V input signal.

0~100% flicker-free, achieve the level of exemption assessment.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically. Full protective plastic housing.

Compliant with Safety Extra Low Voltage standard.

Suitable for indoor I/II/III type lamps application.



LM-75-12-G1A2

Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    220-240Vac

Power Factor:     PF>0.97/230Vac, at full load

Efficiency:    91%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    12Vdc

Output Current:    Max. 6.25A

Output Power:    0~75W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,BIS,TUV,CE,RCM,CB,UKCA,ROHS

Warranty:    5 years


LM-75-24-G1A2

Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    220-240Vac

Power Factor:     PF>0.97/230Vac, at full load

Efficiency:    92%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 3.125A

Output Power:    0~75W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,BIS,TUV,CE,RCM,CB,UKCA,ROHS

Warranty:    5 years


LM-100-24-G1A2

Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    220-240Vac

Power Factor:     PF>0.98/230Vac, at full load

Efficiency:    93%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 4.17A

Output Power:    0~100W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,TUV,CE,RCM,CB,UKCA,ROHS

Warranty:    5 years

Package Included:

1 Piece of LM-75-12-G1A2/LM-75-24-G1A2/LM-100-24-G1A2 Constant Voltage 0/1-10V LED Dimming Ltech Driver

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
